17ft (5.2m) Portable Aluminium Telescopic Mast

Moonraker LMA-S Portable Telescopic Mast

The Moonraker LMA-S is a lightweight six-section aluminium mast designed for portable antenna installations. It extends to approximately 17ft (5.2m) and collapses to around 4ft (1.2m), making it suitable for field operation and temporary VHF/UHF antenna setups.

Each telescopic section measures approximately 40 inches, with tube diameters reducing from 2 inches to 1 inch. Guy rings are included to support an appropriately installed and guyed setup.

Key Features

• Approximately 17ft (5.2m) maximum extended height
• Approximately 4ft (1.2m) collapsed length

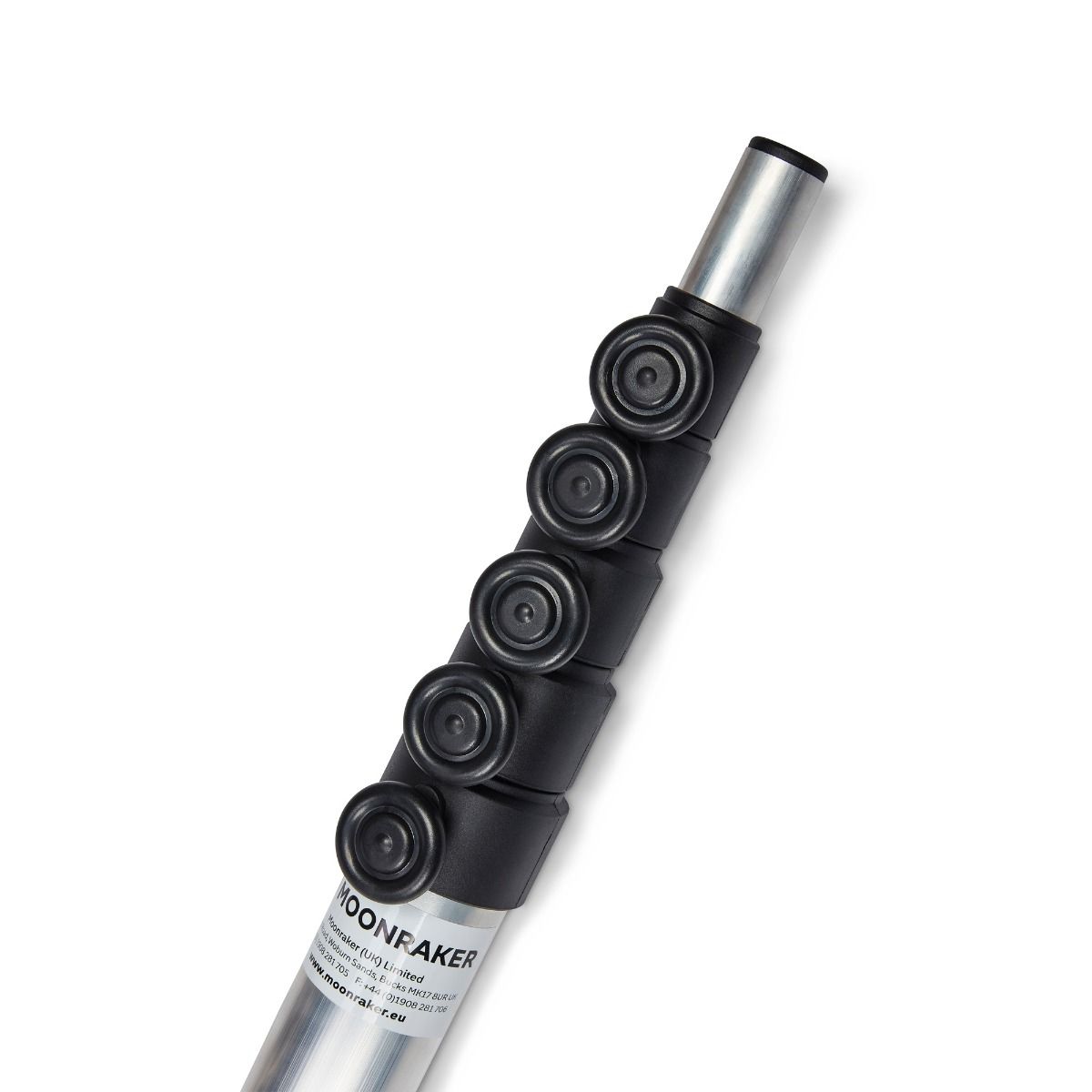

• Six telescopic aluminium sections
• Tube diameter tapers from 2 inches to 1 inch
• Lightweight design for portable use
• Suitable for lightweight VHF/UHF antennas and similar equipment

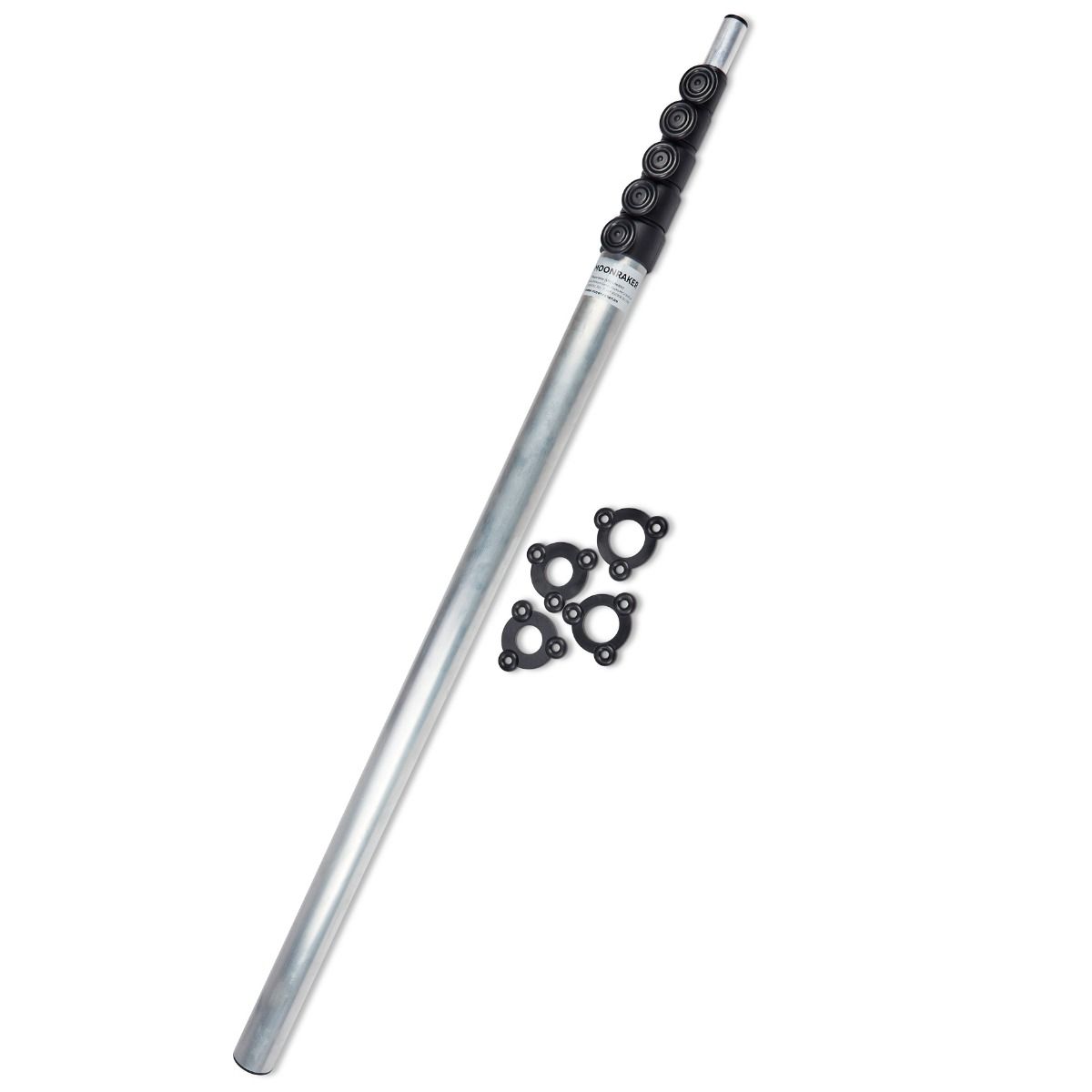

• Guy rings included

Technical Specifications

• Model: LMA-S
• Type: Portable aluminium telescopic mast
• Extended length: Approximately 17ft (5.2m)
• Collapsed length: Approximately 4ft (1.2m)
• Sections: 6 × 40 inches
• Tube diameter: 2–1 inches
• Weight: Approximately 3kg
• Included: Guy rings

Installation note: Select suitable mounting and guying equipment for the antenna load, installation height and expected weather conditions.
