10m (33ft) Portable Aluminium Telescopic Mast

Moonraker LMA-L Portable Telescopic Mast

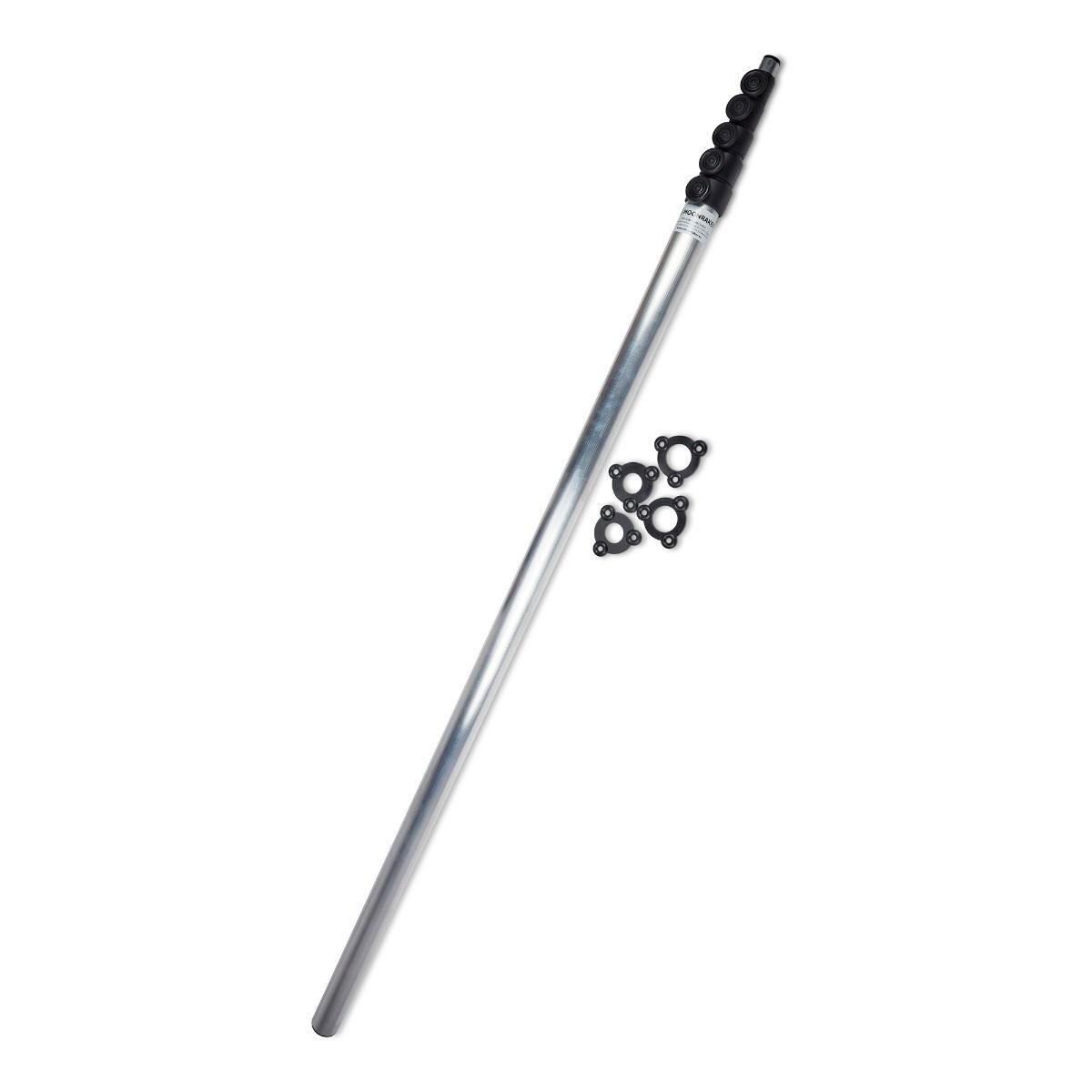

The Moonraker LMA-L is a lightweight six-section aluminium mast designed for portable antenna installations. It extends to approximately 33ft (10m) and collapses to around 7.2ft (2.2m), making it suitable for temporary installations using lightweight VHF/UHF antennas or similar equipment.

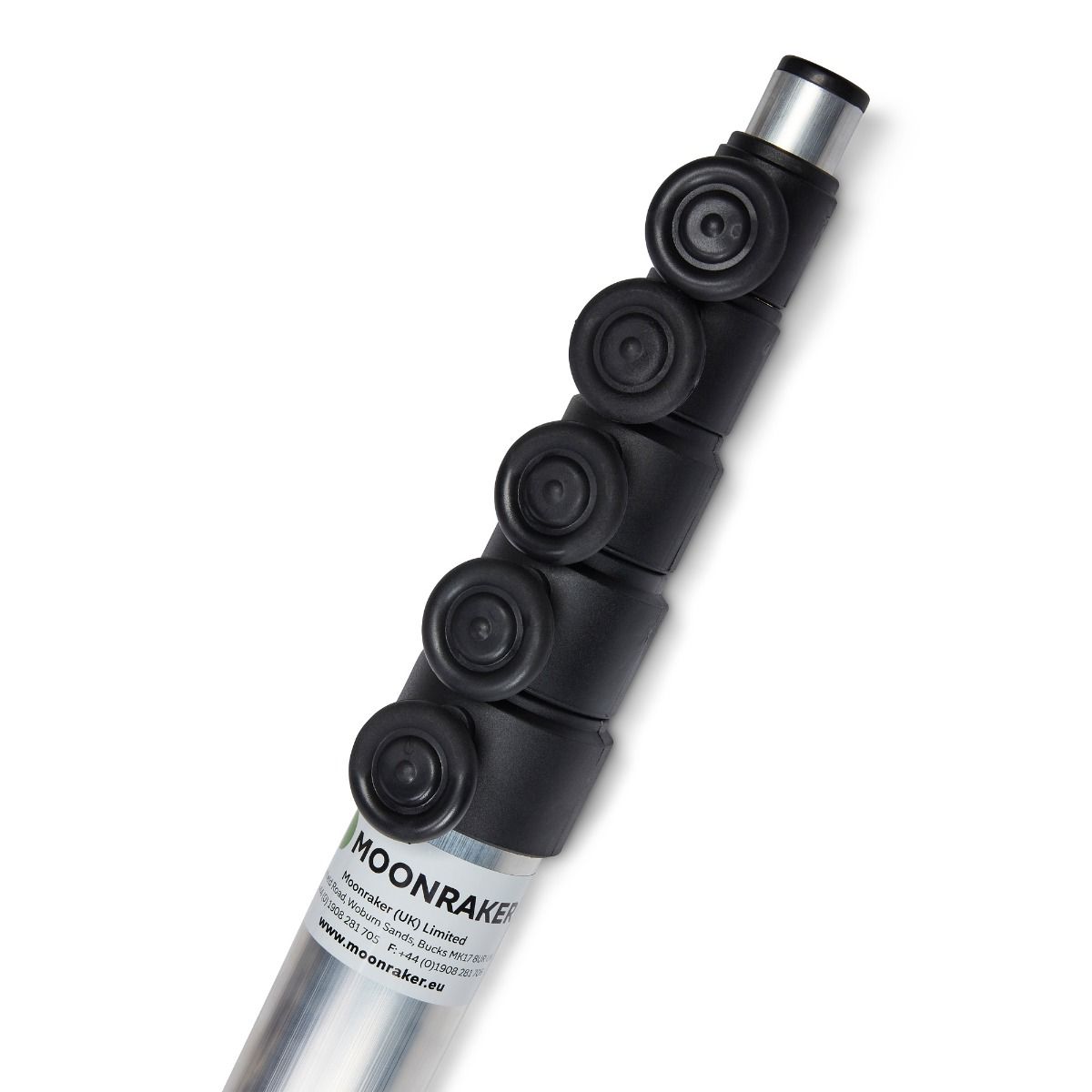

Each telescopic section measures approximately 80 inches, with tube diameters reducing from 2 inches to 1 inch. Guy rings are included to support an appropriately installed and guyed setup.

Key Features

• Approximately 33ft (10m) maximum extended height
• Approximately 7.2ft (2.2m) collapsed length
• Six telescopic aluminium sections
• Tube diameter tapers from 2 inches to 1 inch
• Suitable for lightweight VHF/UHF antennas and similar equipment
• Guy rings included

Technical Specifications

• Model: LMA-L
• Type: Portable aluminium telescopic mast
• Extended length: Approximately 33ft (10m)
• Collapsed length: Approximately 7.2ft (2.2m)
• Sections: 6 × 80 inches
• Tube diameter: 2–1 inches
• Weight: Approximately 6kg
• Included: Guy rings

Installation note: Select suitable mounting and guying equipment for the antenna load, installation height and expected weather conditions.
