Yaesu M-90D Desktop Microphone Dual 8-Pin Connectors, Dynamic, Low-Cut Filter, PTT Lock, For Yaesu HF Transceivers

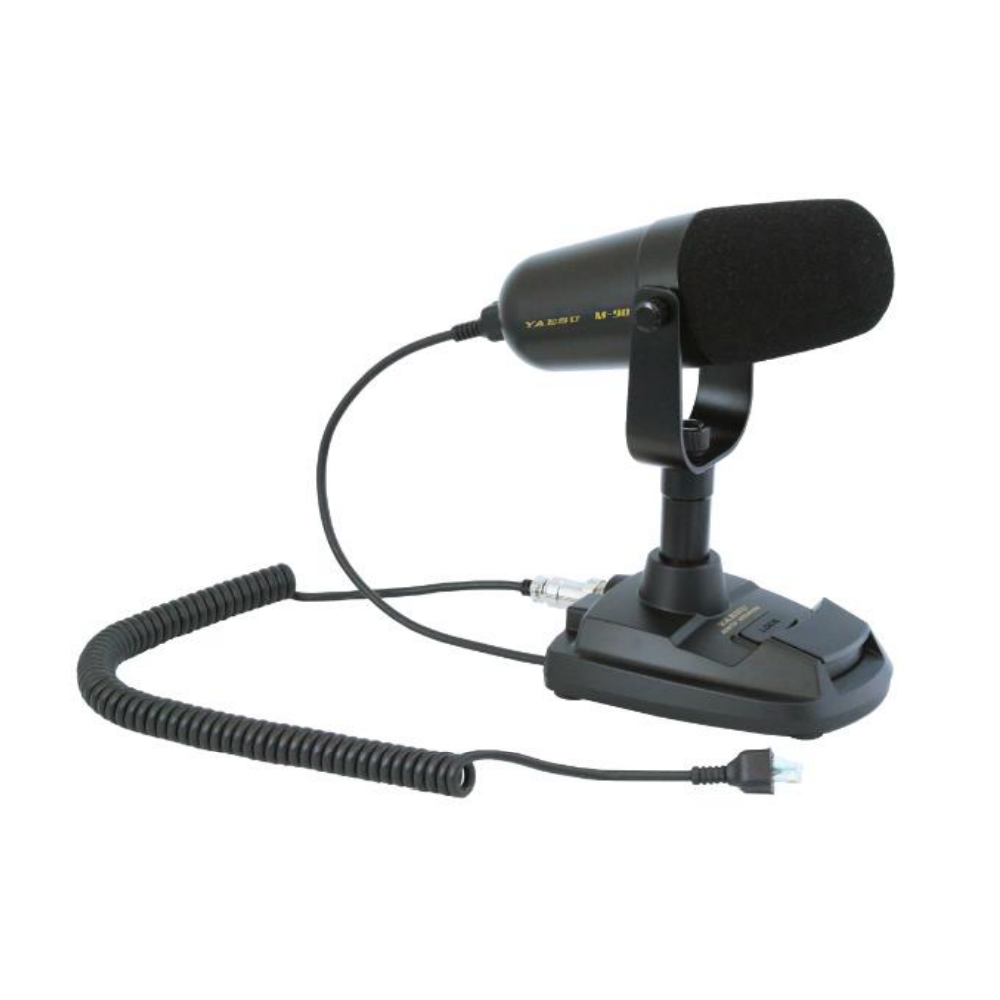

The Yaesu M-90D is a premium desktop microphone designed for Yaesu HF transceivers, featuring dual connectivity with both a round 8-pin jack and an 8-pin modular jack — making it compatible with a wide range of Yaesu radios without adapters. The dynamic microphone element is finely tuned for rich low-to-mid frequency response (30–1700 Hz), delivering clear and concise audio optimised for SSB and AM voice communication. A directional element with windscreen concentrates voice input from the front while reducing ambient noise from the sides, and the built-in low-cut filter further enhances audio clarity. The PTT mechanism uses three air-cylinder tubes — the same design as the flagship M-1 Reference Microphone — providing solid, smooth, and reliable operation over extended use. A one-touch PTT keylock button sits directly above the PTT key for convenient locking during long QSOs.

Please note: This is a special order item. Please contact us before purchasing to confirm availability and lead time.

Key Features

• Dual connectors: round 8-pin jack & 8-pin modular jack
• Dynamic microphone element — tuned for rich low-to-mid frequency response
• Frequency response: 30–1700 Hz
• Directional element with windscreen — reduces ambient side noise
• Built-in low-cut filter for clear, crisp audio
• Air-cylinder PTT mechanism (same as flagship M-1 Reference Mic)
• One-touch PTT keylock button
• Impedance: 600Ω
• Supply voltage: DC 5.0V ±10%
• Current consumption: 15mA (typical)
• Made by Yaesu (Japan)

Technical Specifications

• Microphone type: Dynamic
• Frequency response: 30–1700 Hz
• Sensitivity: -60 dB (1 kHz, 0 dB = 1V/1Pa)
• Impedance: 600Ω
• Supply voltage: DC 5.0V ±10%
• Current consumption: 15mA (typical)
• Connectors: Round 8-pin & 8-pin modular
• Country of origin: Japan
