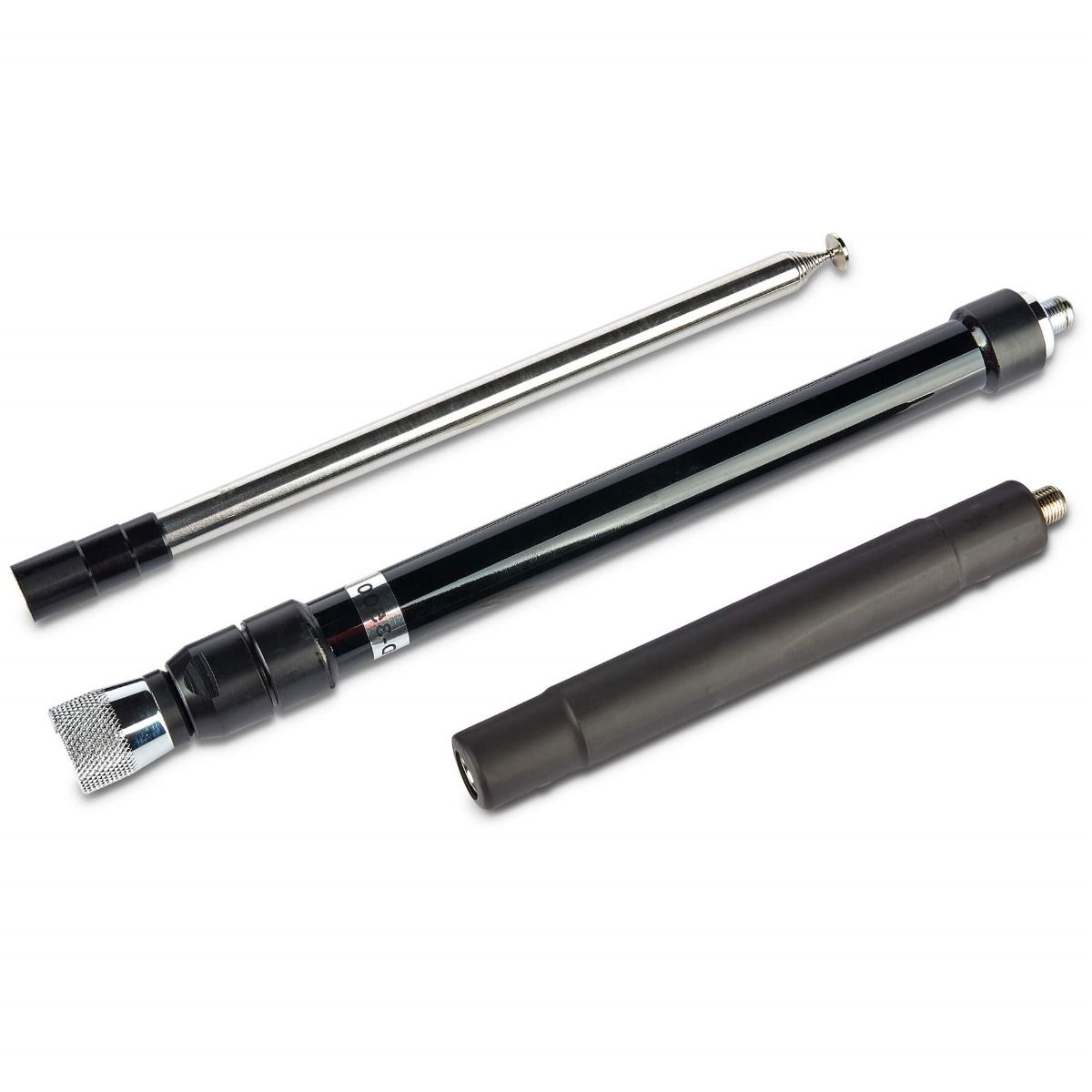

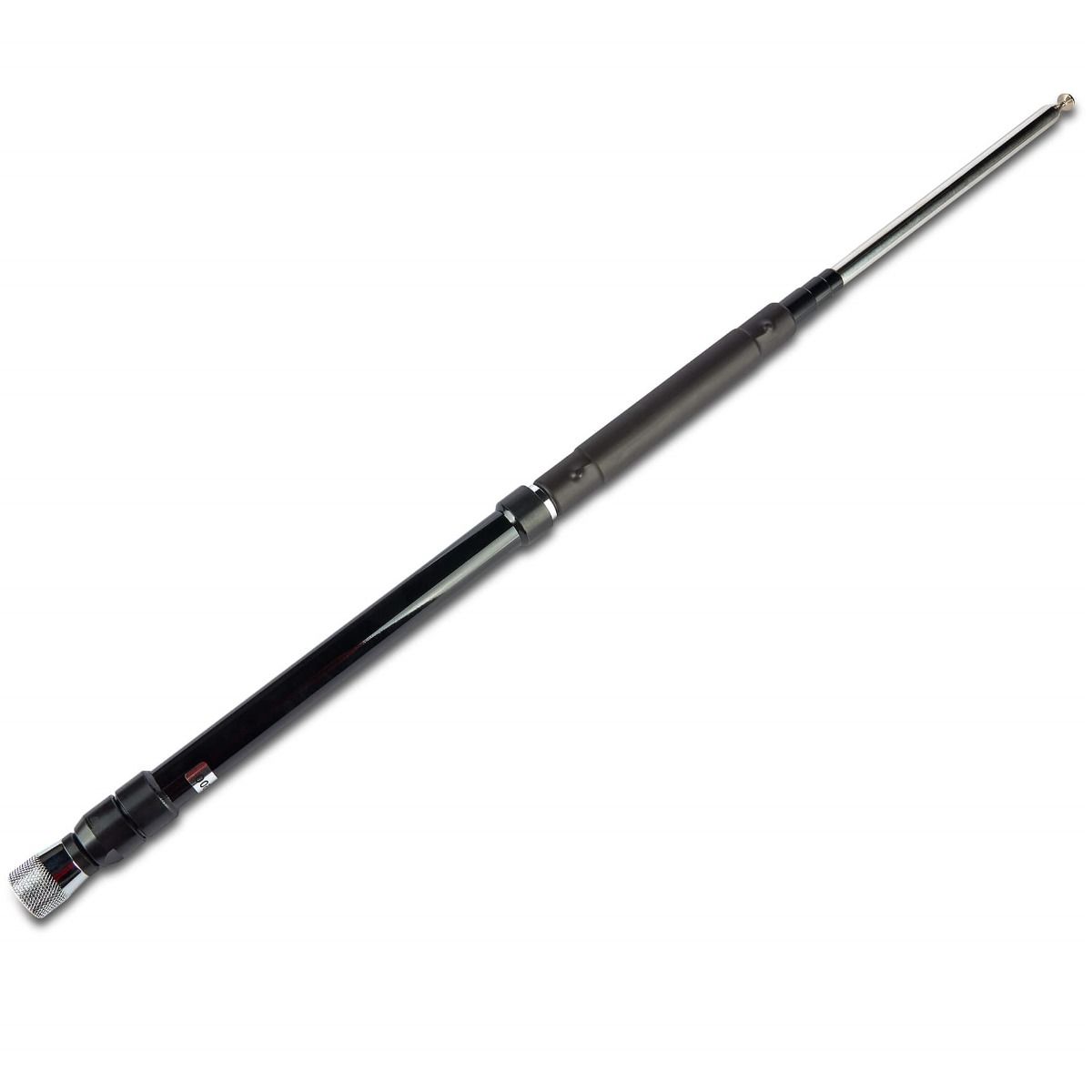

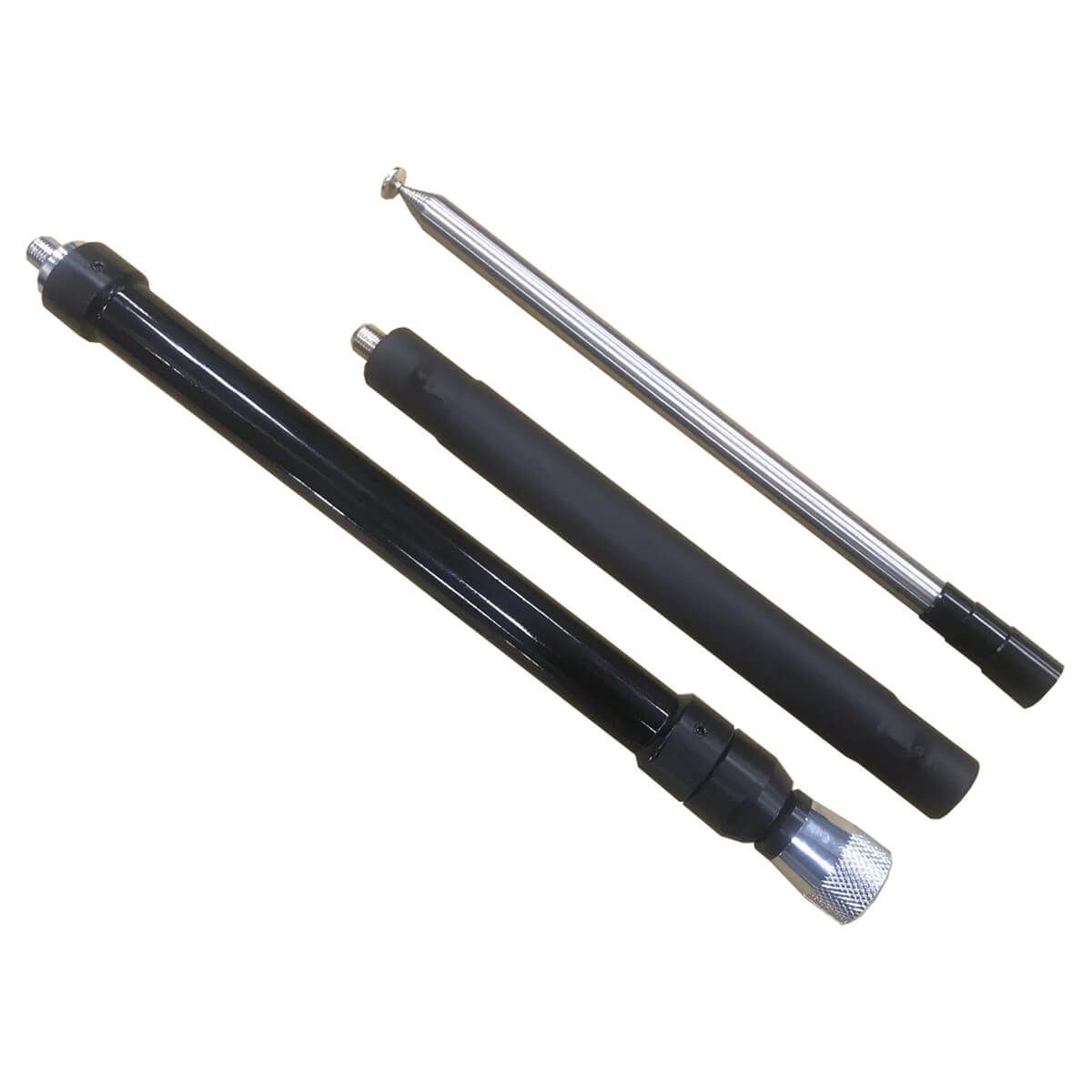

MD-3500 Slider Multiband Mobile Antenna 80–6m, 3.5–50MHz, 130W SSB

The Moonraker MD-3500 is a multiband slider antenna covering 80m through to 6m (3.5–50 MHz) — an excellent choice for portable and field operations where a single antenna needs to cover the full HF range plus 6m. Resonance is achieved by sliding the antenna element to the minimum SWR point, with no traps or loading coils to compromise performance.

The PL-259 mount means it fits directly onto any standard car or vehicle mount, making it equally at home for SOTA, POTA, or mobile HF operation. At 2.6m maximum length and 130W SSB rated, it handles serious operating without the bulk of a full-size HF antenna.

Key Features

• Multiband coverage: 3.5–50 MHz (80m, 40m, 20m, 17m, 15m, 12m, 10m, 6m)
• Slider tuning — slide to minimum SWR, no traps or coils
• 130W SSB power rating
• 50Ω impedance — standard match for all HF transceivers

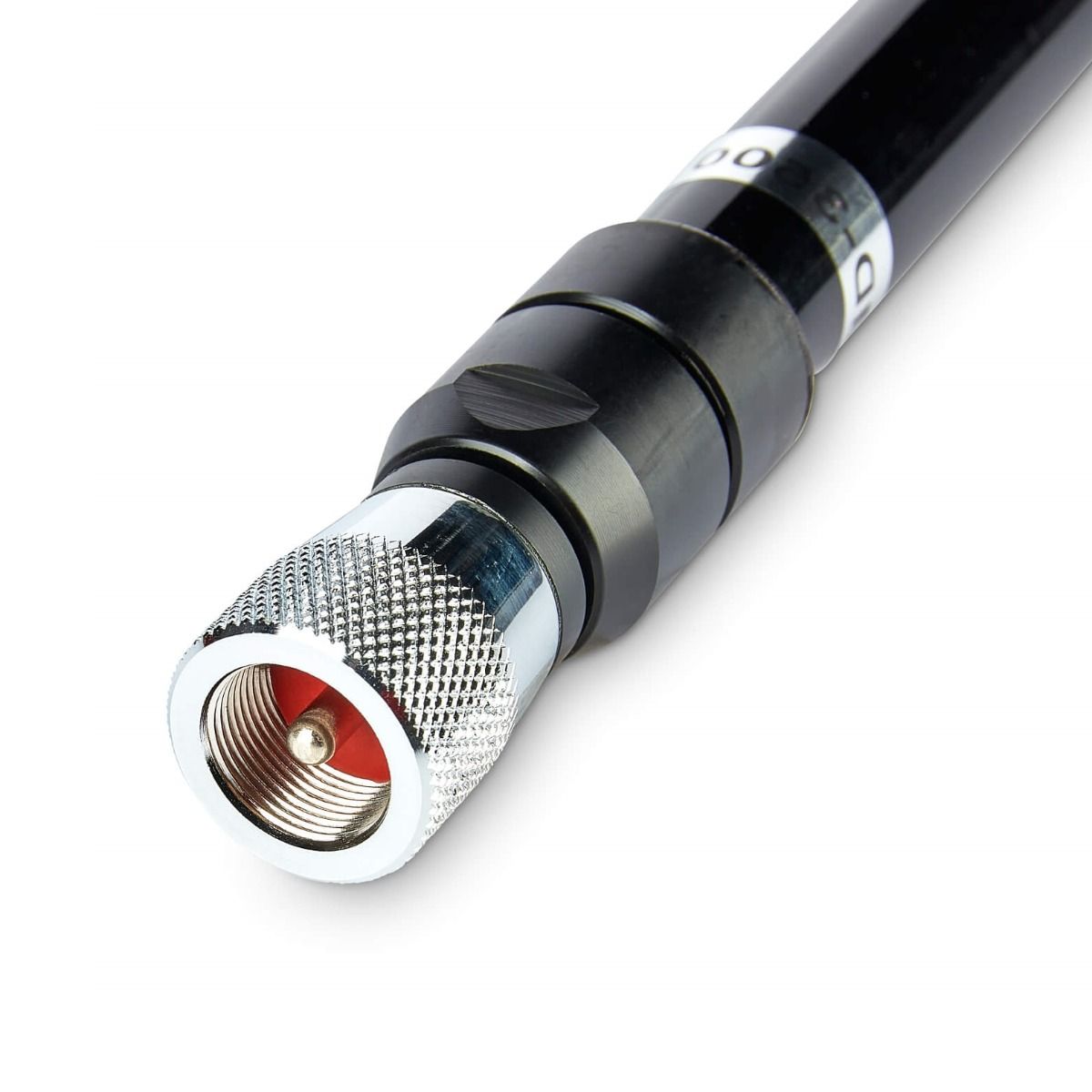

• PL-259 connector — fits existing car and vehicle mounts
• Maximum length: approx. 2.6m
• Suitable for portable, SOTA, POTA, and mobile HF operation

Specifications

• Frequency: 3.5–50 MHz (80m–6m)
• Max power: 130W SSB
• Impedance: 50Ω
• Type: 1/4 wave reduced (HF), 1/4 wave (50 MHz)
• Connector: PL-259
• Length: approx. 2.6m (max.)
