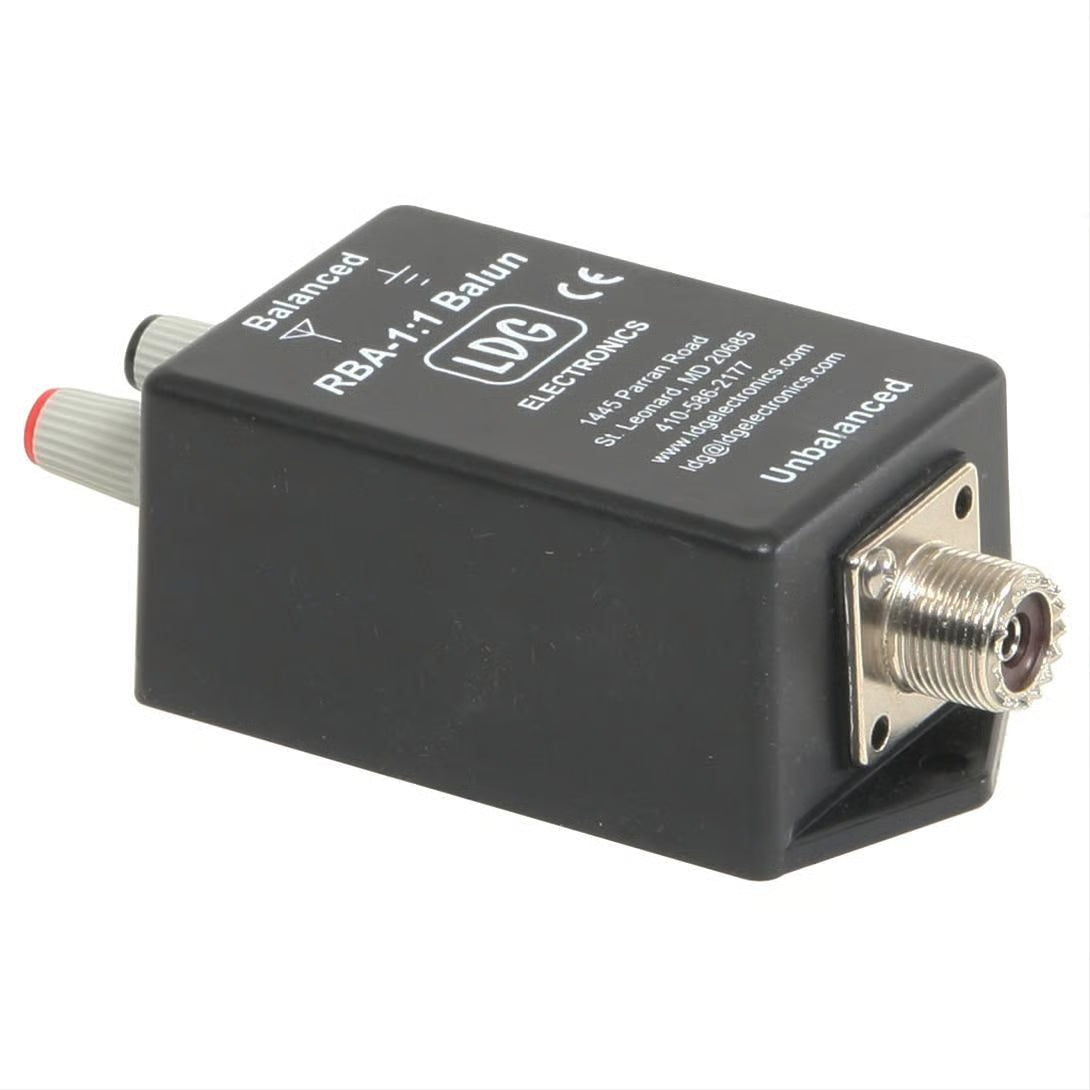

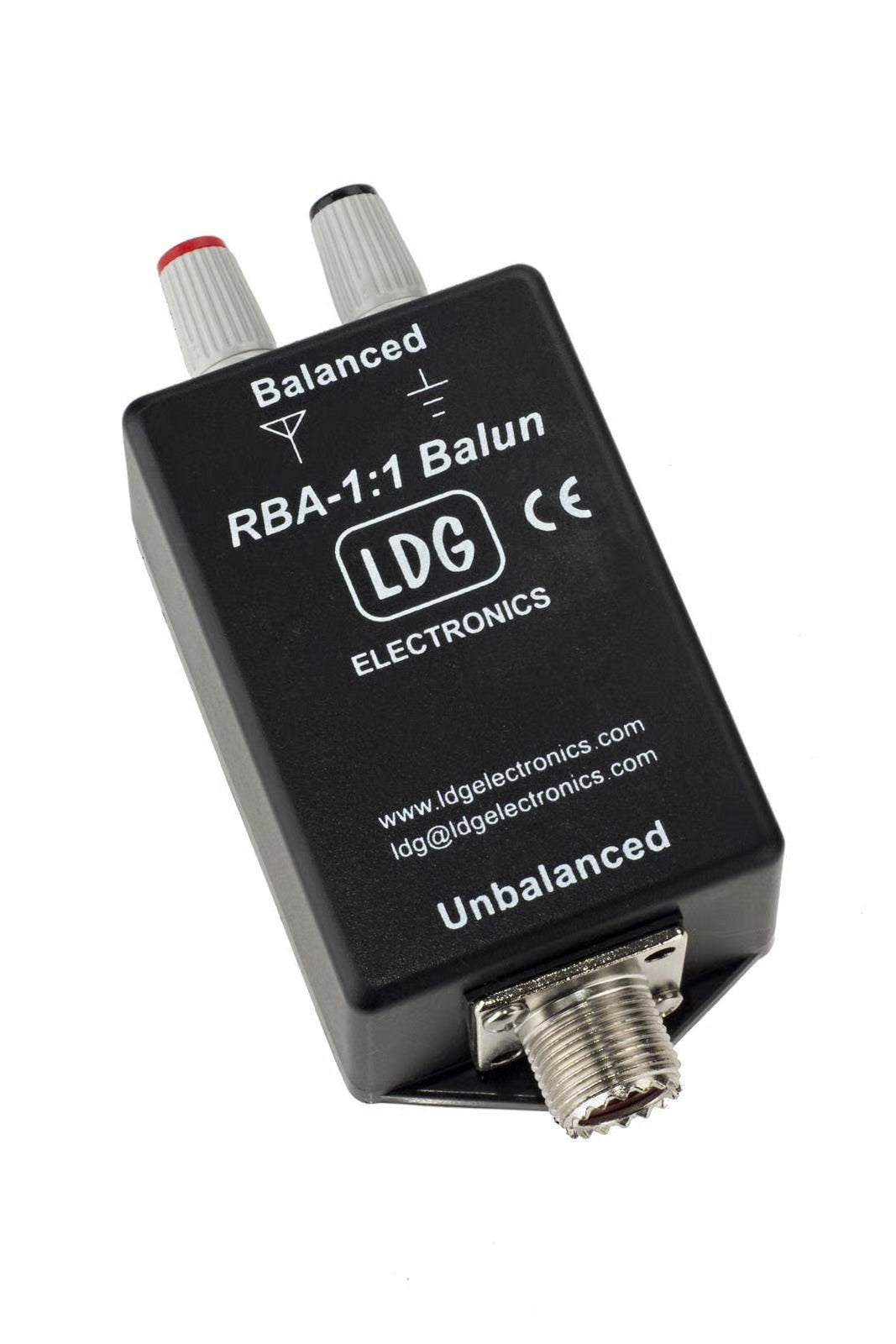

LDG RBA-1 1:1 Current Balun 1.8-30MHz, 200W, For Ladder Line & Wire Antennas

The LDG RBA-1 is a 1:1 current balun designed to provide a clean, balanced interface between ladder line, long wire, and random wire antennas and your coax feedline or automatic antenna tuner. Originally designed to complement LDG's range of automatic antenna tuners, the RBA-1 operates completely standalone and is compatible with any ATU or transceiver. A 1:1 current balun suppresses common-mode RF currents on the coax outer braid, reducing RF interference in the shack and improving antenna pattern symmetry — particularly important when using ladder line or end-fed wire antennas. Covering 1.8–30 MHz with 200W power handling, it's suitable for all HF amateur radio bands. The compact enclosure (5 x 2.5 x 1.25 inches) is easy to weatherproof for outdoor installation at the antenna feed point.

Key Features

• 1:1 current balun configuration
• Frequency coverage: 1.8–30 MHz (full HF spectrum)
• 200W power handling
• Ideal for ladder line, long wire & random wire antennas
• Suppresses common-mode RF currents — reduces shack RFI
• Standalone operation — compatible with any ATU or transceiver
• Easy to weatherproof for outdoor installation
• Compact enclosure: 5 x 2.5 x 1.25 inches
• Weight: 6oz (with enclosure)
• Made by LDG Electronics (USA)

Technical Specifications

• Type: 1:1 current balun
• Frequency range: 1.8–30 MHz
• Max power: 200W
• Enclosure size: 5 x 2.5 x 1.25 inches
• Weight: 6oz (with enclosure)
• Country of origin: USA
