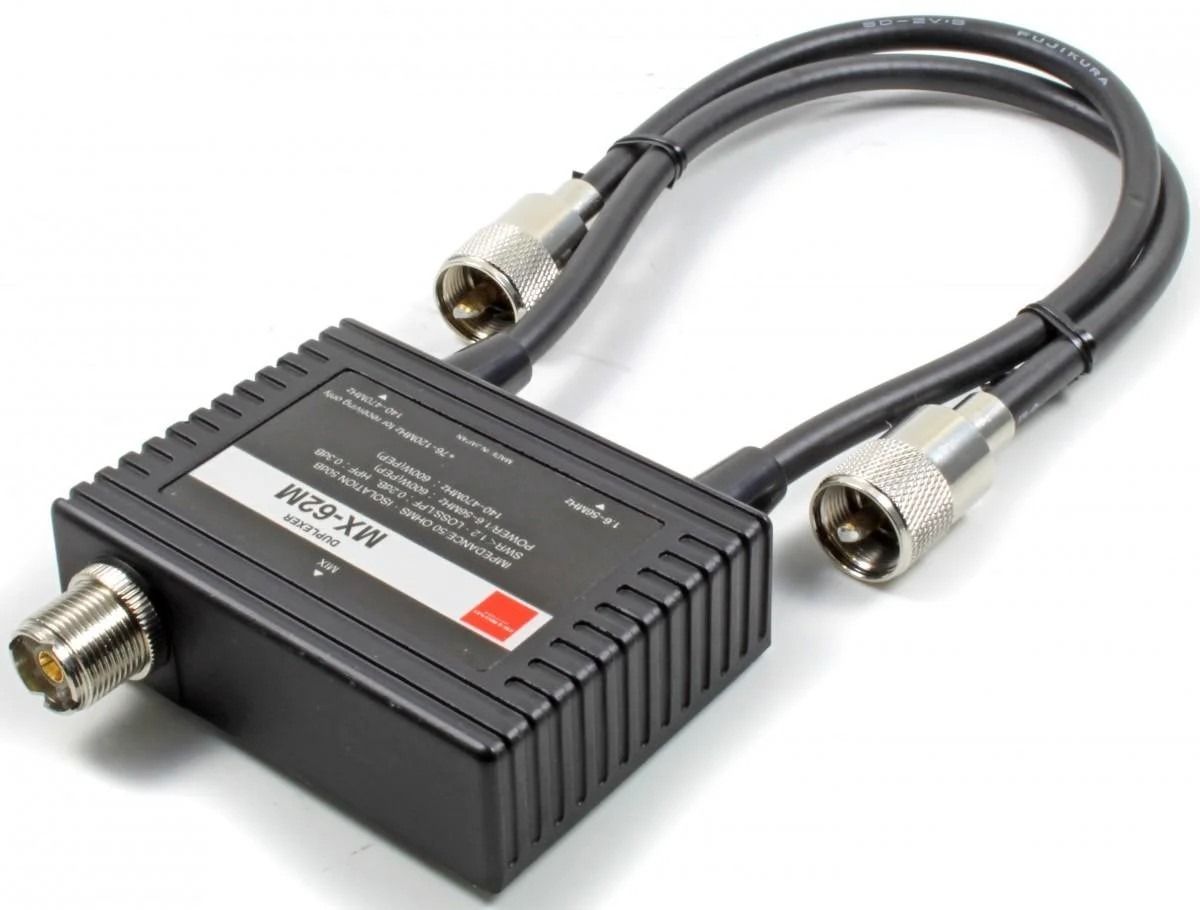

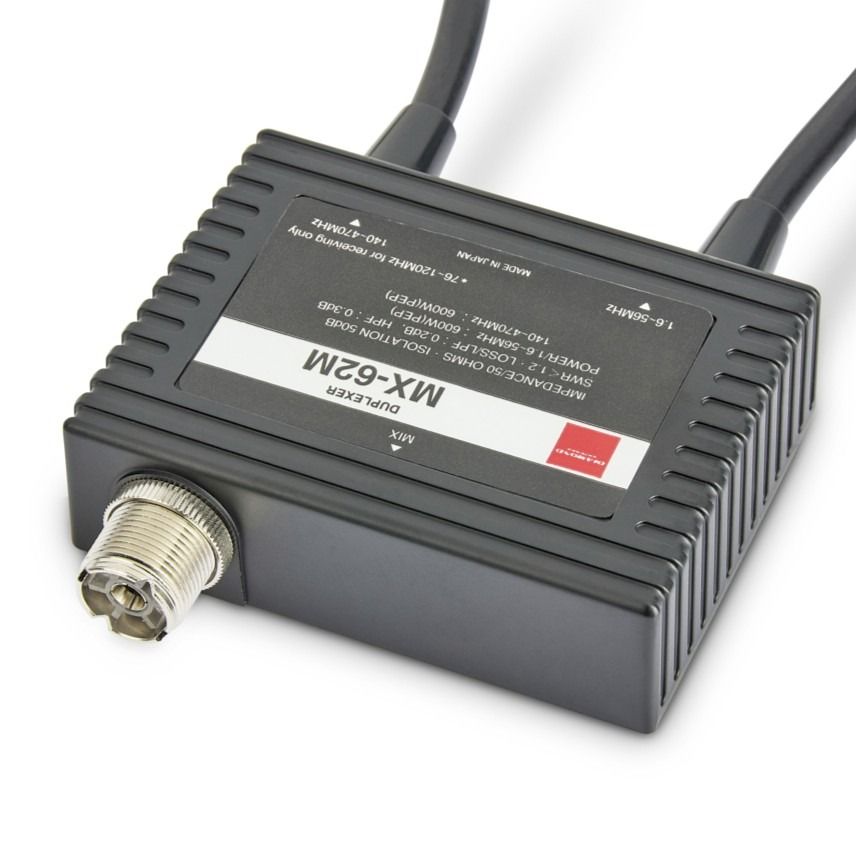

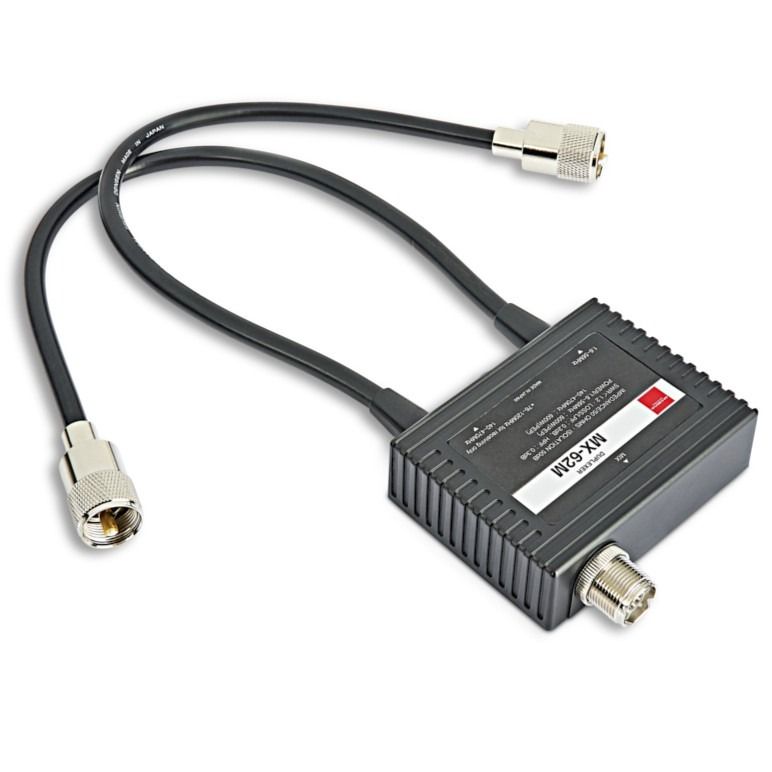

Diamond MX-62M Duplexer 1.6–56MHz / 76–470MHz - 76–120MHz RX Only

Diamond MX-62M Duplexer (1.6–56MHz / 76–470MHz) (76–120MHz RX Only)

Diamond MX-62M Duplexer is a high-quality antenna sharing solution that allows you to operate multiple radios on a single antenna system with excellent performance and minimal signal loss.

Covering 1.6–56MHz and 76–470MHz, this duplexer is ideal for combining HF, VHF, and UHF equipment. The 76–120MHz range is receive-only, making it perfect for airband monitoring alongside your main radio operations.

Engineered for low insertion loss and high isolation between ports, the MX-62M ensures reliable performance across a wide frequency range while protecting connected equipment from interference.

Key Features:

• Covers 1.6–56MHz (HF) and 76–470MHz (VHF/UHF)

• 76–120MHz receive-only for airband monitoring

• Allows multiple radios to share a single antenna

• Low insertion loss and high isolation

• Compact and durable design

• Ideal for base station and shack setups
  Perfect for amateur radio operators and listeners, the Diamond MX-62M provides a flexible and efficient way to manage multi-band antenna systems.

Specifications:

• Dimensions: 86W x 25H x 64D mm

• Weight: 360g

• Passband width: LPF 1.6 to 56MHz HPF 76 to 470MHz (76 to 120MHz receiving only)

• Power rating: 600W (PEP)

• Insertion loss: LPF Less than 0.2dB 140 to 470MHz Less than 0.3dB

• Impedance: 50ohmsVSWR: Less than 1.2:1

• Socket: SO239

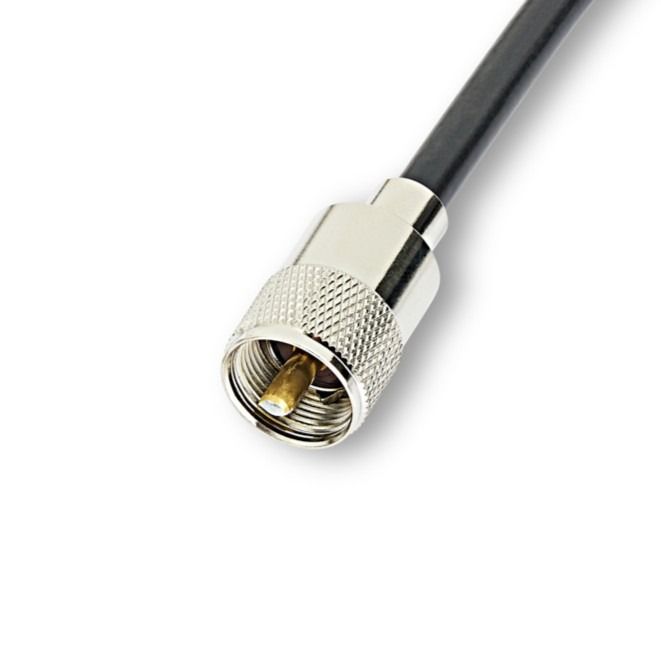

• Connection: 2 X PL259

• Coaxial cable: 5D-2VS (35cm)
