VNA 3G Portable Vector Network Analyser 50kHz–3GHz

The Chelegance VNA 3G is a portable vector network analyser covering 50 kHz to 3 GHz, delivering significant performance upgrades over the NanoVNA-F V2. A more powerful processor and updated firmware enable scan speeds of 400 points per second — four times faster than its predecessor — with support for up to 501 measurement points for enhanced measurement detail.

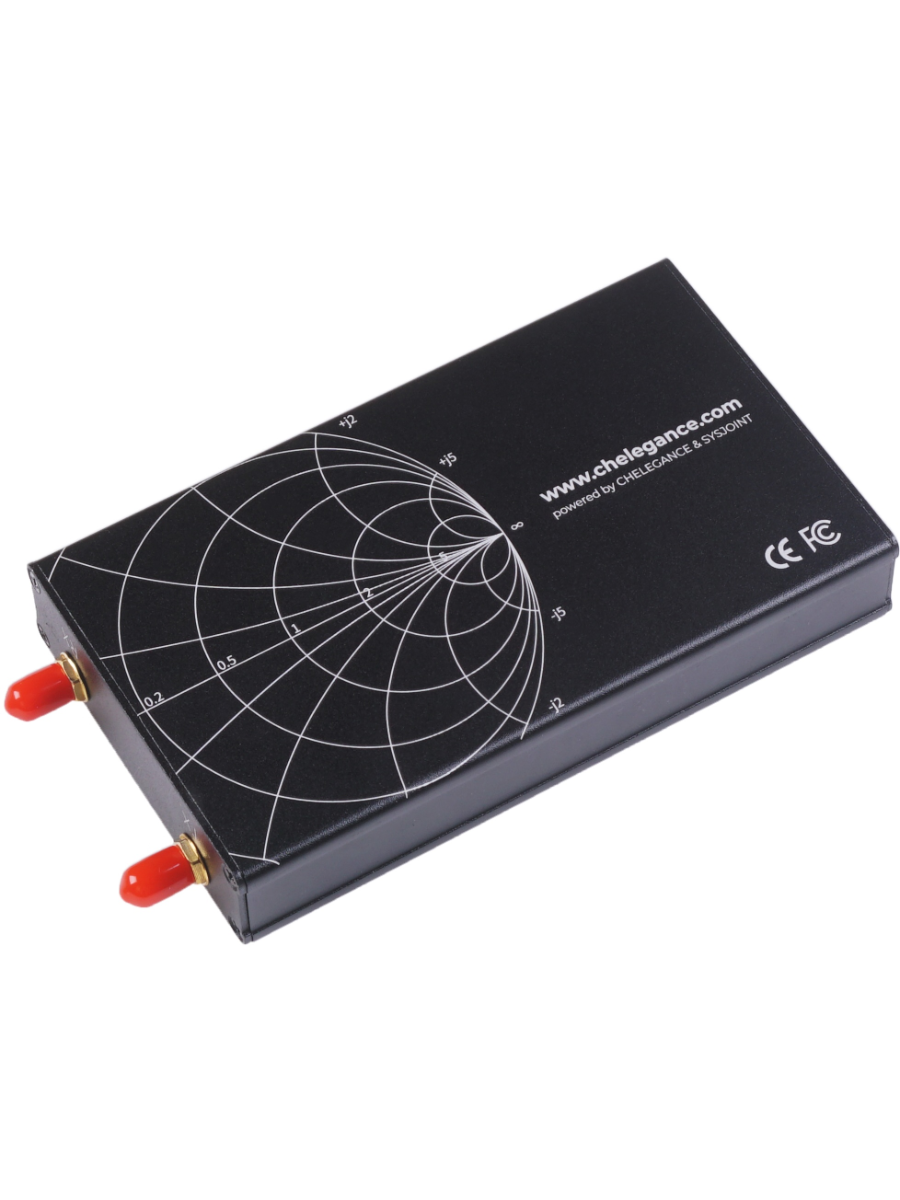

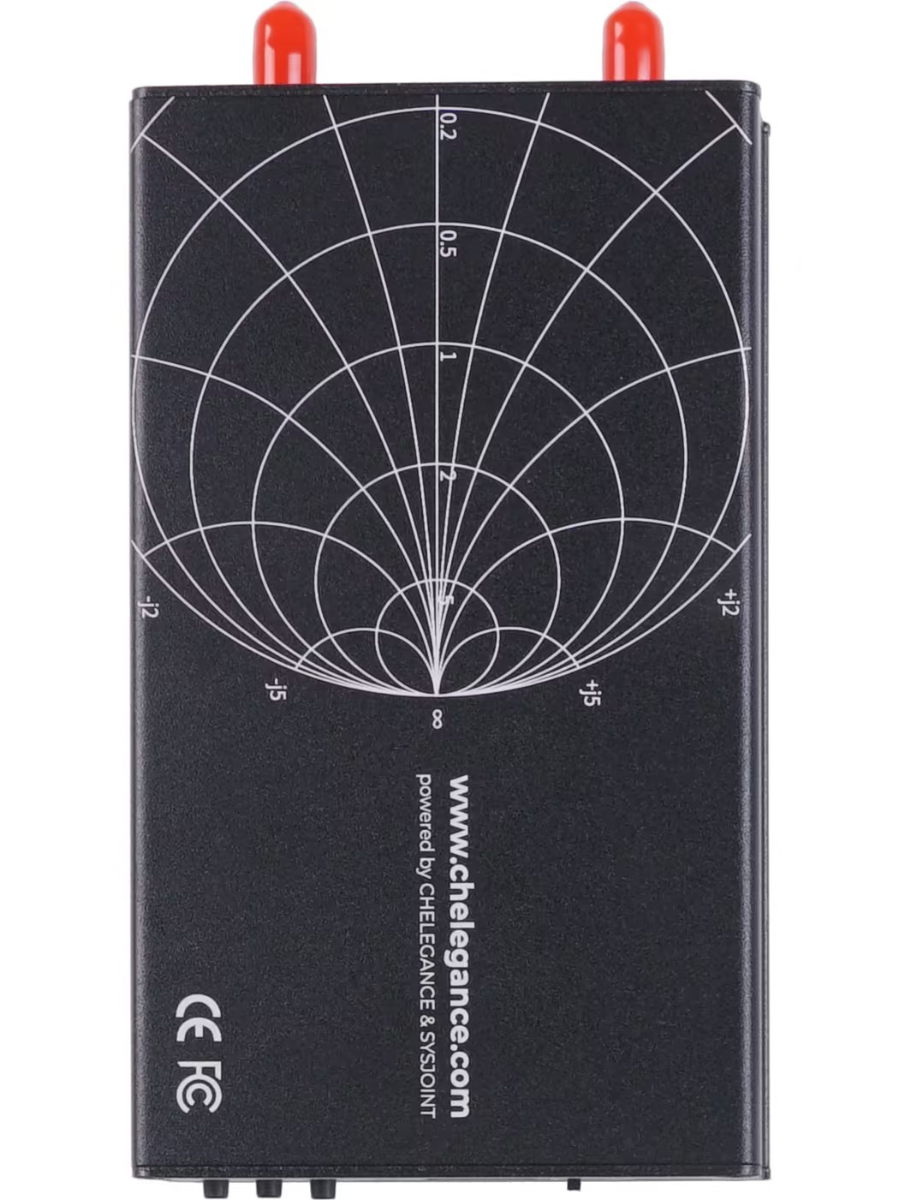

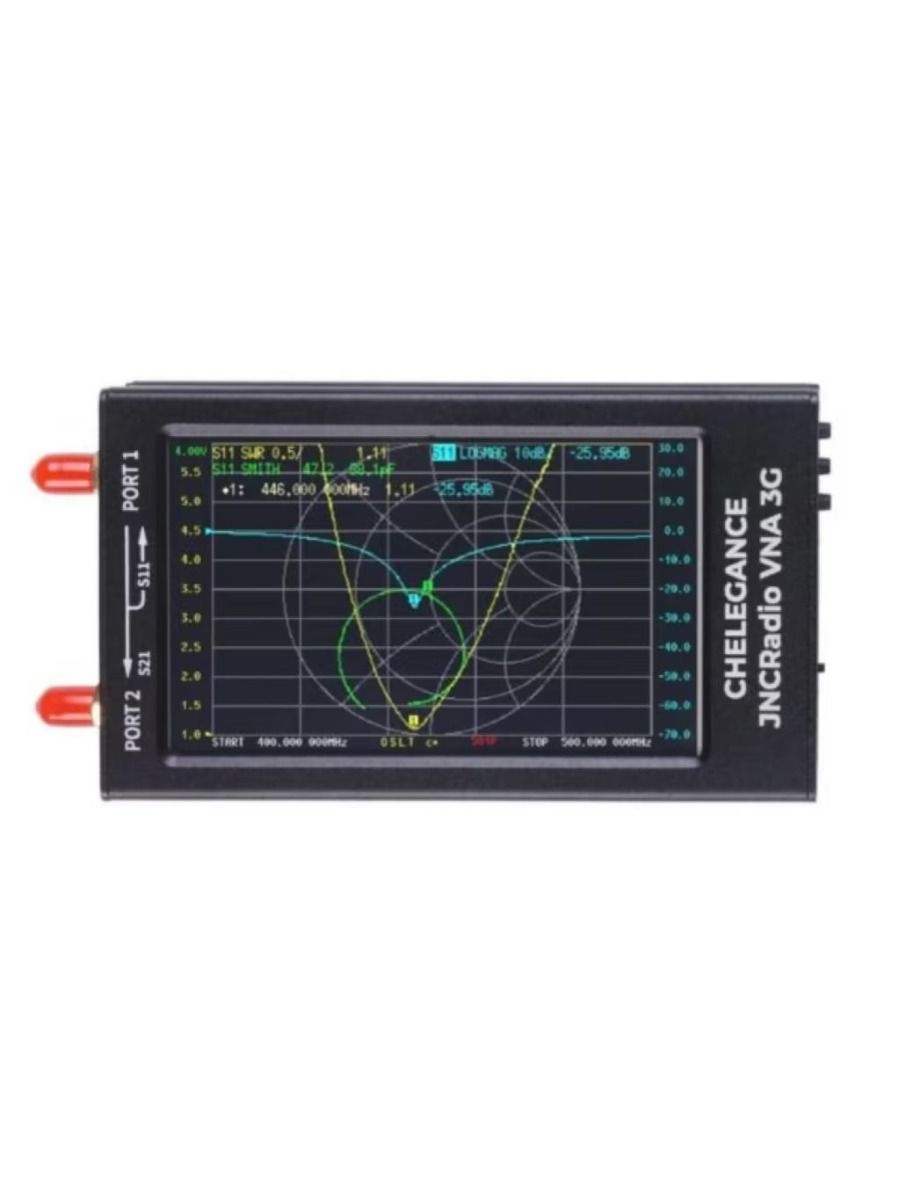

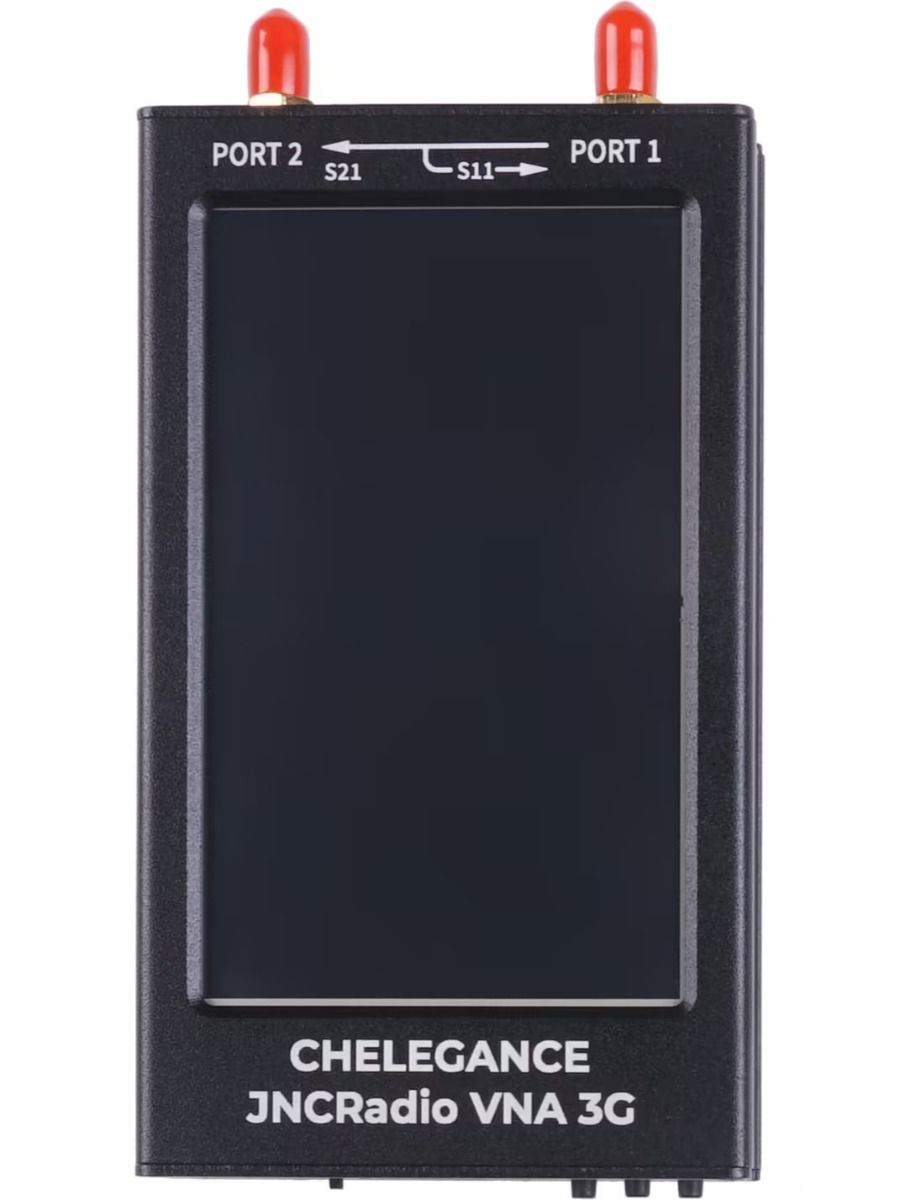

Housed in a robust aluminium alloy case with a 4.3-inch IPS touchscreen (800×480), it supports S11, S21, VSWR, Smith chart, LogMag, phase, delay, Q factor, polar, and linear measurements. A built-in real-time clock (RTC) automatically timestamps saved .snp files, and 13 calibration state storage slots keep your setups organised. The 5000mAh battery and USB Type-C charging make it a fully self-contained field instrument.

Key Features

• Frequency range: 50 kHz–3 GHz
• Scan speed: 400 pts/s — 4× faster than NanoVNA-F V2
• Up to 501 measurement points for enhanced detail
• Measurements: S11, S21, VSWR, Smith chart, LogMag, phase, delay, Q factor, polar, linear
• 13 calibration state storage slots
• Built-in RTC — auto-timestamps saved .snp files
• 4.3″ IPS resistive touchscreen (800×480)
• Aluminium alloy case — robust field construction
• 5000mAh battery for extended portable use

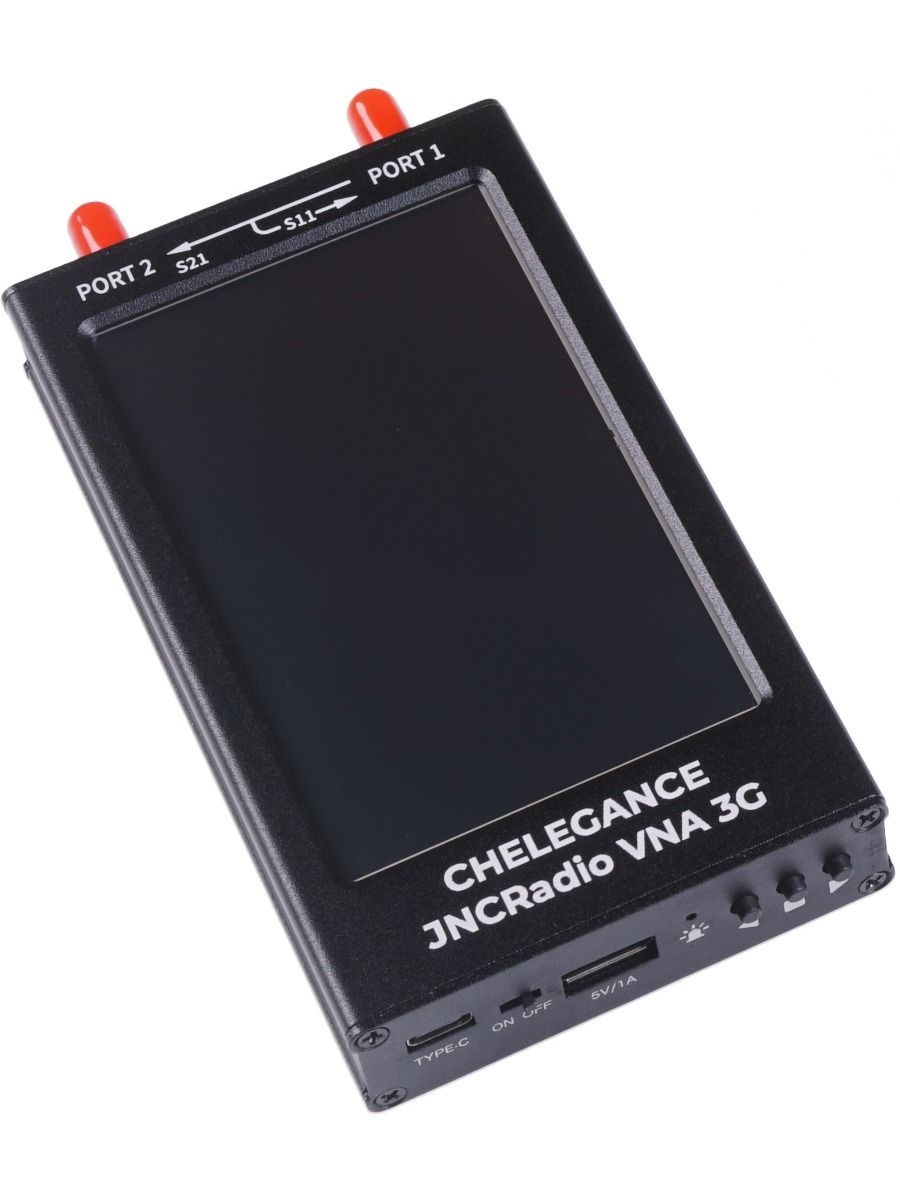

• USB Type-C charging and data port
• USB-A power output: 5V/1A
• SMA RF connectors
• Future firmware upgrade capable

Specifications

• Frequency range: 50 kHz–3 GHz
• Display: 4.3″ IPS LCD, 800×480, resistive touch
• Scan speed: 400 pts/s
• Measurement points: up to 501
• Calibration storage: 13 slots
• Battery: 5000mAh Li-ion (3.7V)
• Charging: USB Type-C (4.7–5.5V)
• Power output: USB-A 5V/1A
• RF connector: SMA
• Case: Aluminium alloy
• Operating temperature: 0–45°C
• Dimensions: 130 × 75 × 22mm
