NanoVNA-F V2 Portable Vector Network Analyser 50kHz–3GHz

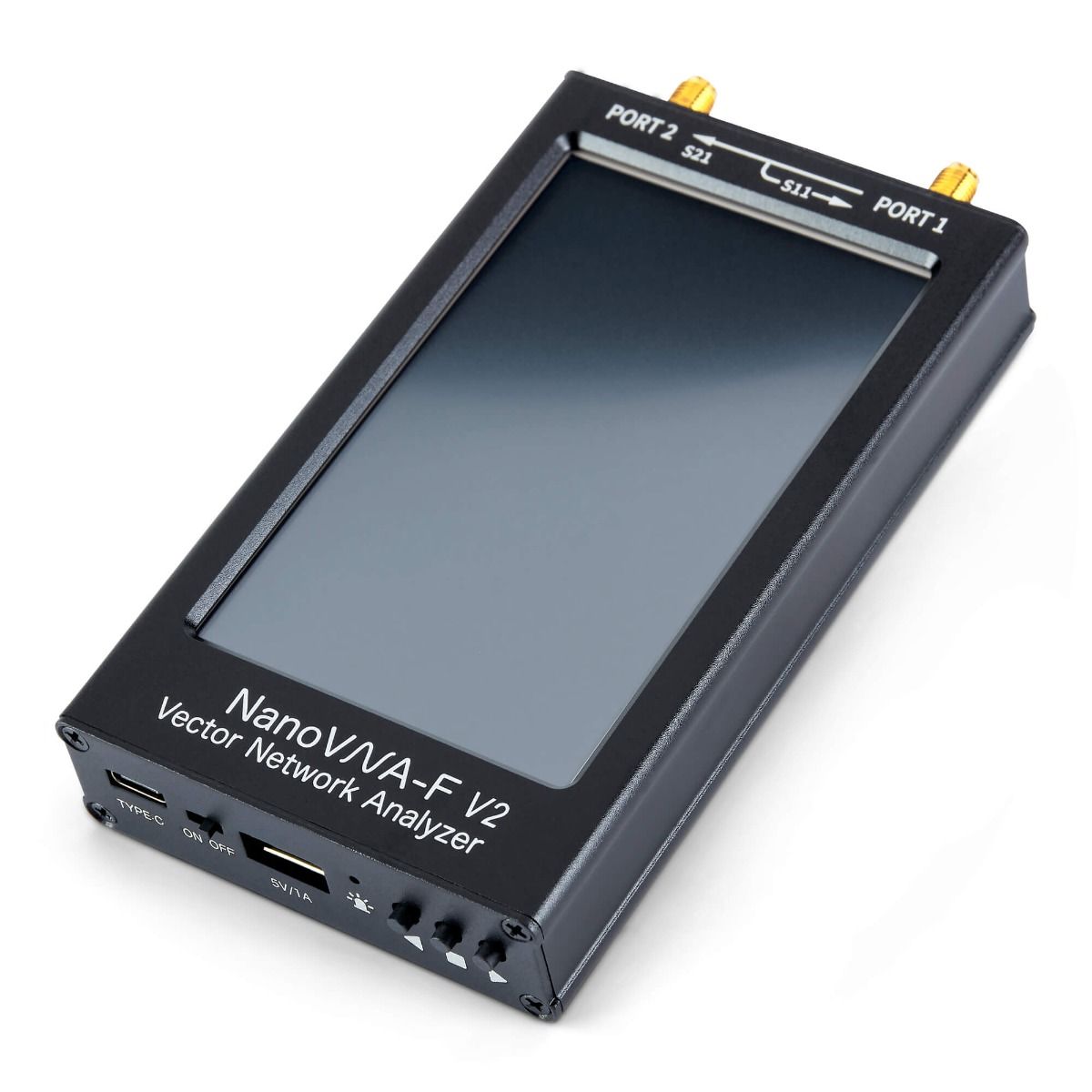

The Chelegance NanoVNA-F V2 is a portable stand-alone vector network analyser covering 50 kHz to 3 GHz, housed in an aluminium enclosure with a 4.3-inch IPS touchscreen. With a 5000mAh Li-Po battery and low-power design, it delivers up to 7 hours of continuous operation — one of the longest battery lives in its class.

S21 dynamic range exceeds 70dB from 50kHz to 1.5GHz and 60dB from 1.5–3GHz, making it well suited for antenna analysis, filter characterisation, cable testing, and amplifier measurement. Operation via touchscreen or three side buttons, firmware upgrades via USB Type-C, and a USB-A 5V/1A power output add practical versatility in the field.

Key Features

• Frequency range: 50 kHz–3 GHz
• S21 dynamic range: 70dB (50kHz–1.5GHz) / 60dB (1.5–3GHz)
• S11 dynamic range: 50dB (50kHz–1.5GHz) / 40dB (1.5–3GHz)
• 7-hour battery life — 5000mAh Li-Po, low-power design
• 4.3″ IPS LCD touchscreen (800×480) with resistive touch
• Aluminium enclosure — robust field construction

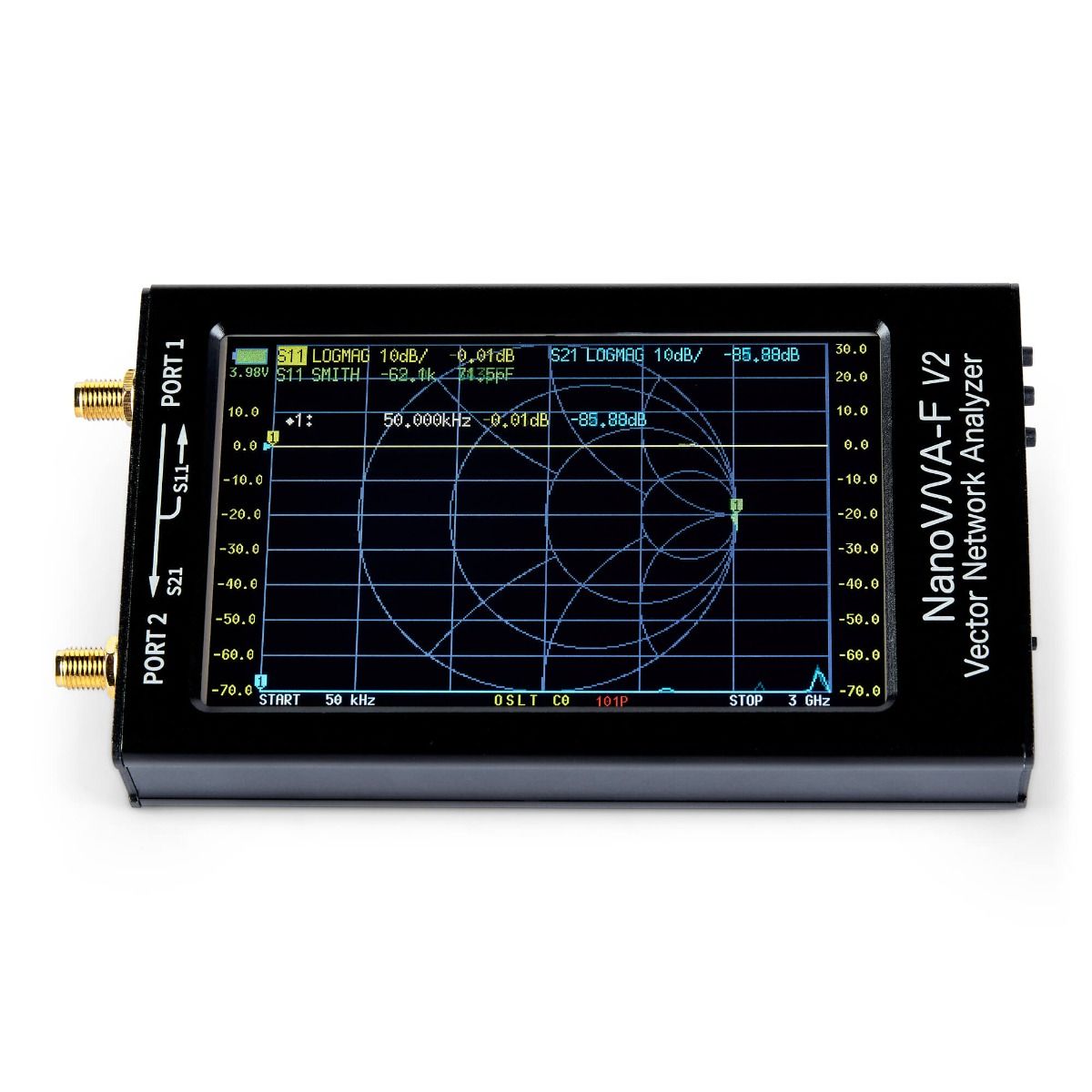

• Measurements: S-parameters, VSWR, Smith chart, phase, polar, and more
• 4 traces and 4 markers; moveable marker table
• 5 calibration result storage slots with interpolation support
• 101 sweep points
• Firmware upgrades via USB Type-C with U-disk
• USB-A power output: 5V/1A
• SMA female RF connectors

Specifications

• Frequency range: 50 kHz–3 GHz
• S21 dynamic range: 70dB (50kHz–1.5GHz), 60dB (1.5–3GHz)
• S11 dynamic range: 50dB (50kHz–1.5GHz), 40dB (1.5–3GHz)
• RF output power: −9dBm
• Frequency tolerance: 0.5ppm
• Display: 4.3″ IPS LCD, 800×480, resistive touch
• Sweep points: 101
• Calibration storage: 5 slots (interpolation supported)
• Traces: 4 | Markers: 4
• Battery: 3.7V Li-Po, 5000mAh (~7 hours)
• RF connector: SMA female
• Dimensions: 125 × 75 × 20mm
