Arrow II 146/437-14WBP Alaskan Antenna with Duplexer

Arrow II 146/437-14WBP Alaskan  Antenna

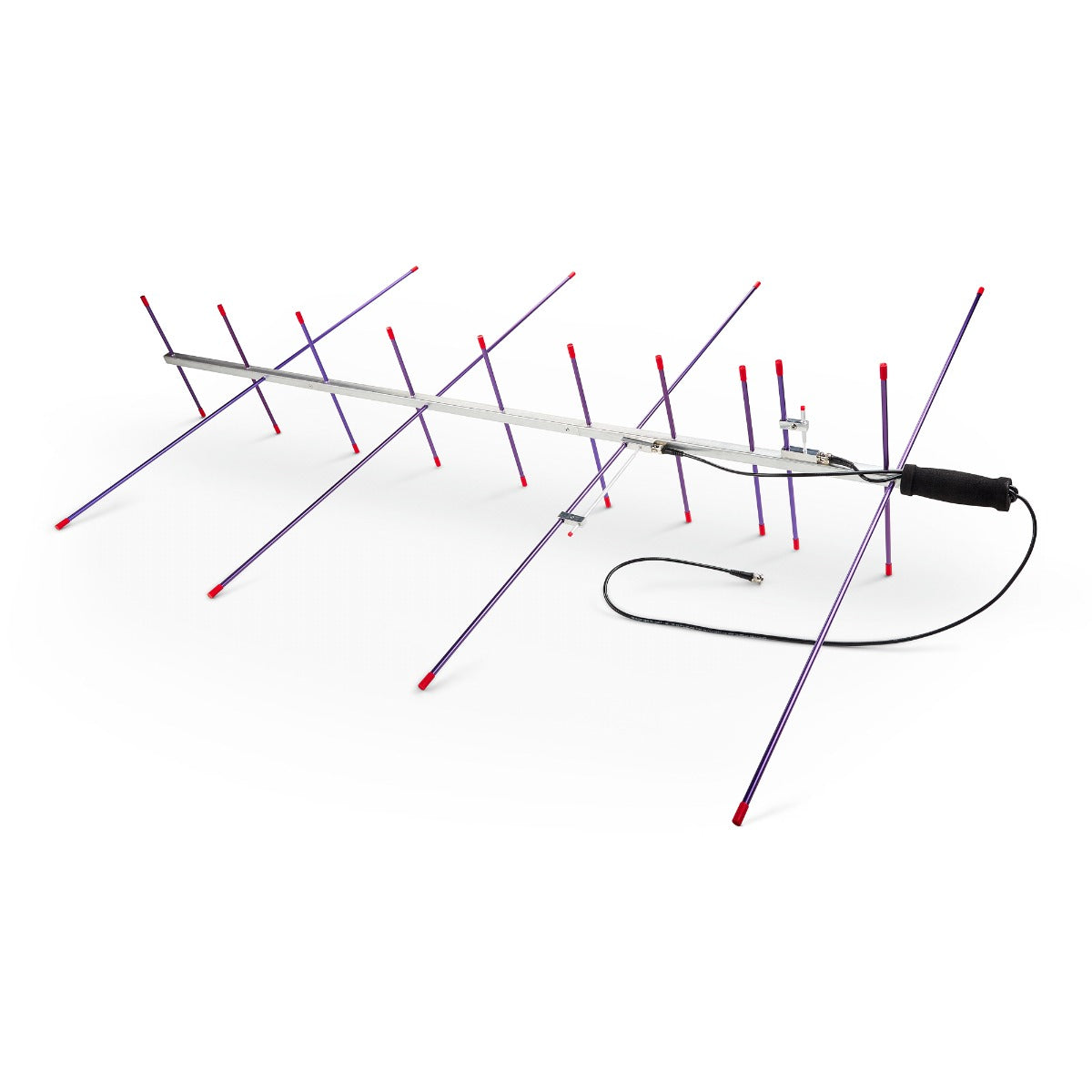

The Arrow II 146/437-14WBP Alaskan is a portable dual-band Yagi for amateur operation on 2m and 70cm. It uses four VHF elements crossed with ten UHF elements, with a split boom for transport.

This version includes a 10W duplexer and connecting cables for a suitable single-connector dual-band radio.

Key Features

• 14 elements: four for 2m and ten for 70cm.
• Aluminium arrow-shaft elements.

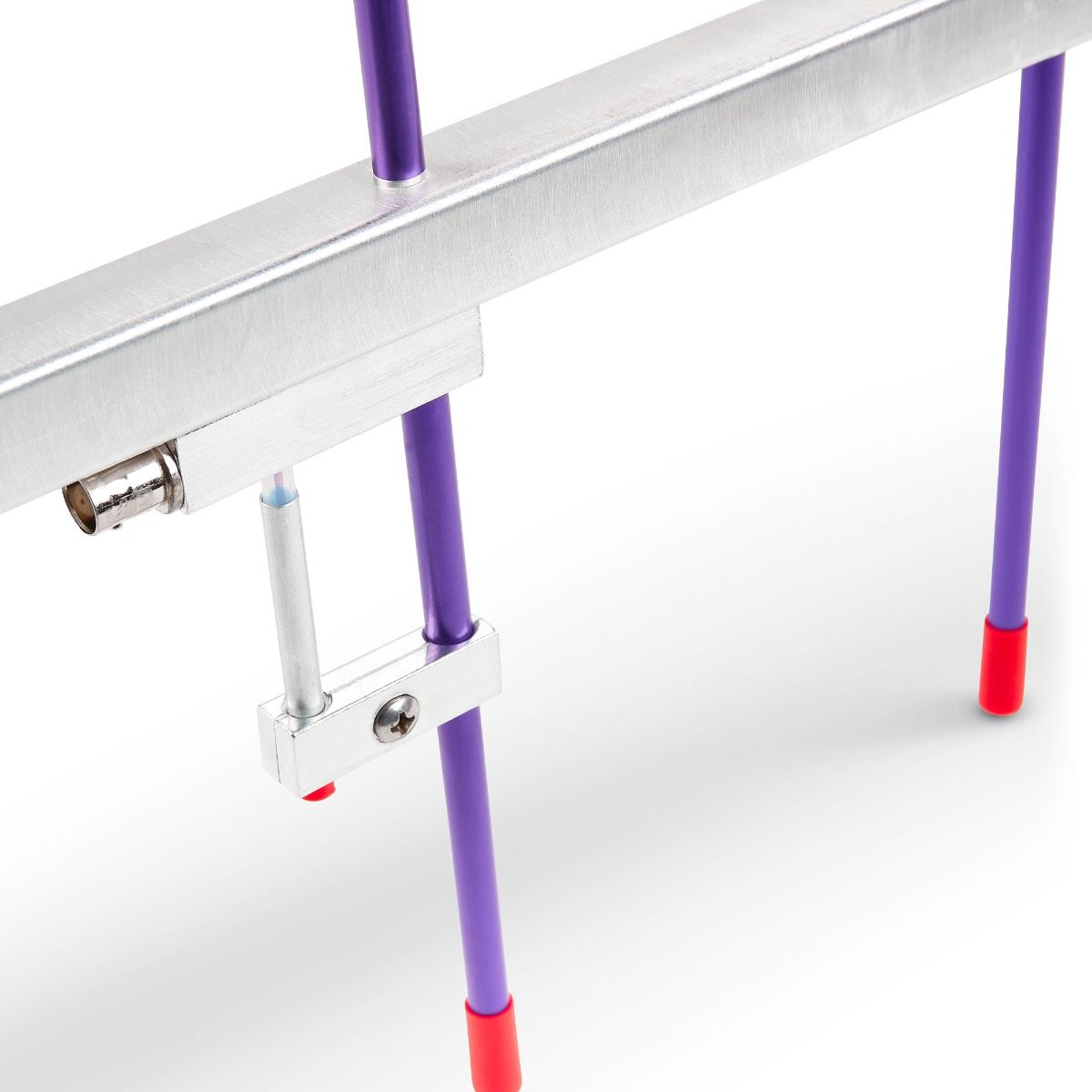

• Pre-assembled, pre-tuned in-line gamma matches.

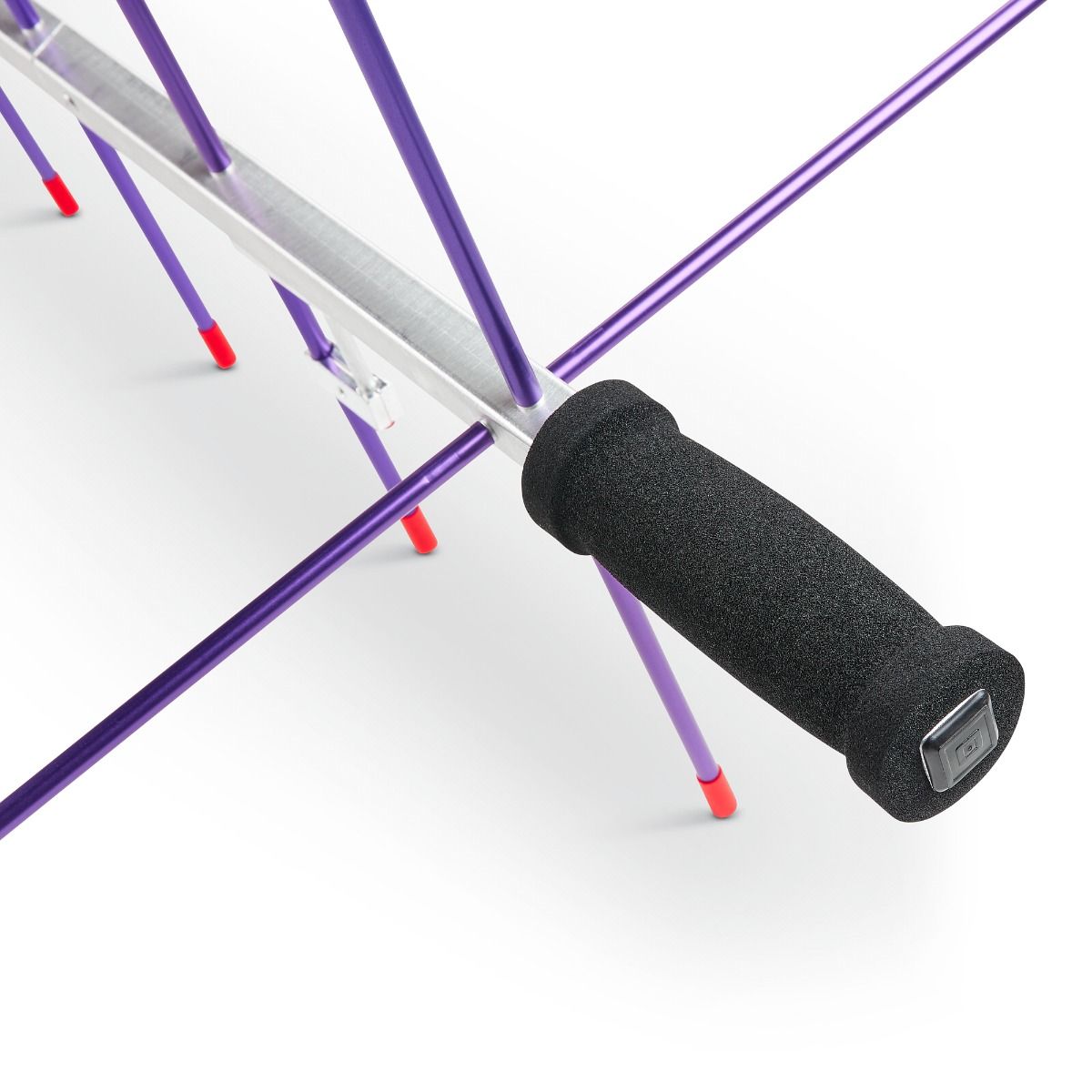

• Foam grip and protective plastic tips.
• 1/4-20 threaded tripod mounting hole beneath the grip.

Technical Specifications

• Model: 146/437-14WBP Alaskan
• Bands: 2m / 70cm, nominal 146 / 437 MHz
• Type: Crossed dual-band Yagi
• Elements: 4 VHF + 10 UHF
• Boom: Split boom, 3/4-inch square with rounded corners
• Longest packed boom section: Less than 22 inches (55.88 cm)

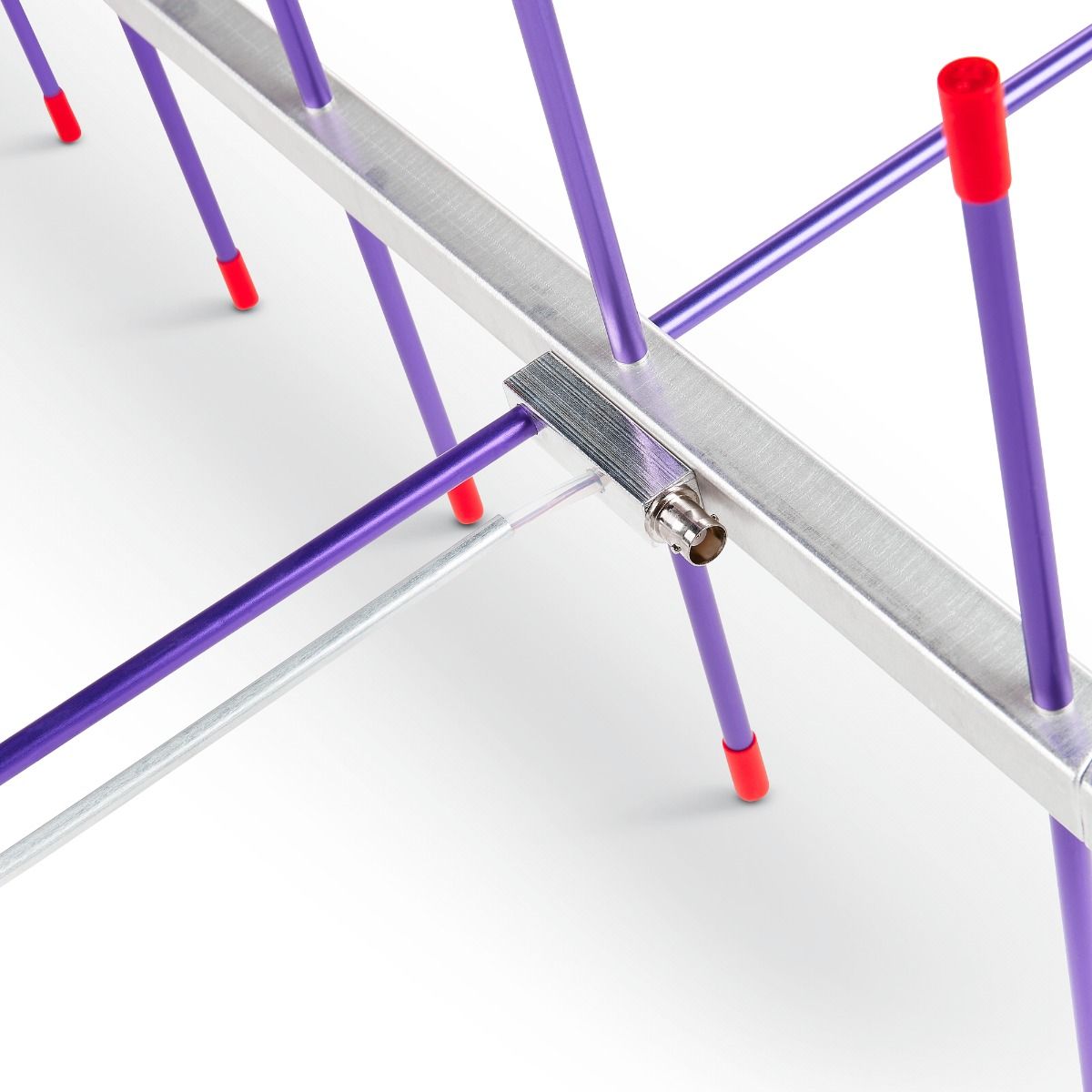

• Antenna connectors: Separate BNC female VHF and UHF connections
• Included: 10W duplexer and connecting cables
• Duplexer power limit: 10W maximum

Operating Power

Arrow advises keeping handheld transmit power below 10W. Do not exceed the included duplexer’s 10W rating.
