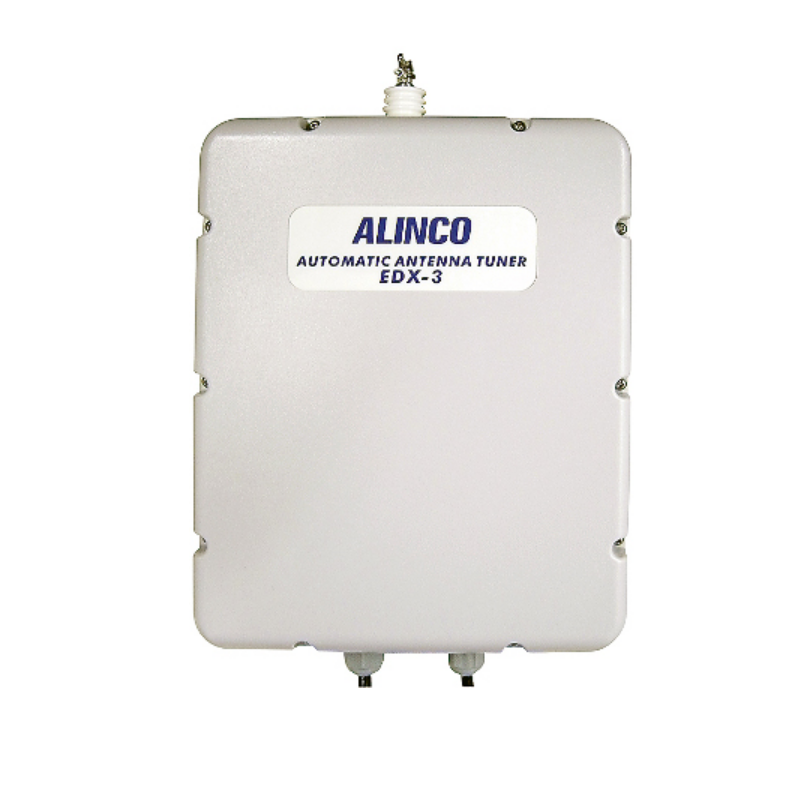

Alinco EDX-3 Automatic Antenna Tuner 1.6–30 MHz, 100W

The Alinco EDX-3 is the successor to the popular EDX-2, offering a more compact and lighter design while expanding compatibility across a wider range of Alinco transceivers. Built from weather-resistant plastic, it is suitable for mobile, portable, and base station operation.

Primary compatibility is with the Alinco DX-SR8E and DX-SR9E, and it also supports older models including the DX-70, DX-77, DX-701, DX-707, and DX-801. Frequency coverage starts at 1.6 MHz with antennas of 12m or longer, or 3.5 MHz with antennas of 7m or longer. Up to 250 memory locations allow ~1-second recall on previously tuned frequencies, with standard tuning completing in 2–3 seconds.

Key Features

• Successor to the EDX-2 — more compact and lighter
• Compatible with Alinco DX-SR8E, DX-SR9E, DX-70, DX-77, DX-701, DX-707, DX-801
• Frequency range: 1.6–30 MHz (≥12m antenna) / 3.5–30 MHz (≥7m antenna)
• Input power: 100W continuous, 150W PEP
• 250 memory locations — ~1s recall on stored frequencies
• Standard tuning: 2–3 seconds; max 15 seconds
• Weather-resistant plastic housing for mobile/portable use
• SO-239 antenna connector, 50Ω input impedance
• Power: 13.8V DC, max 2A

Ideal For

• Alinco HF transceiver users
• Mobile and portable HF operation
• Base station antenna matching
• Multi-band HF antenna systems
