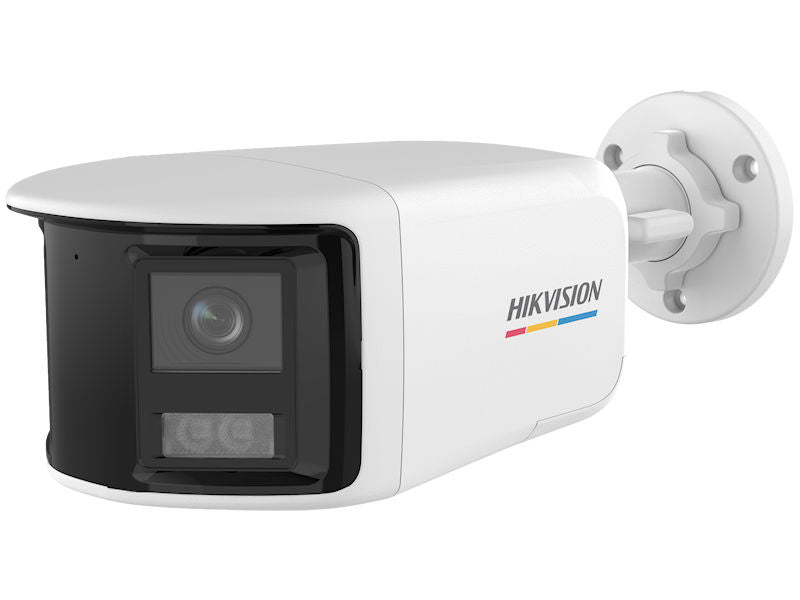

Hikvision DS-2CE12KF3TP-DLS 5MP ColorVu Dual-Lens 180° Panoramic Bullet Camera

Hikvision DS-2CE12KF3TP-DLS — 5MP ColorVu Dual-Lens 180° Panoramic Bullet Camera

The Hikvision DS-2CE12KF3TP-DLS is a standout surveillance camera for locations where wide-area coverage is critical. Its dual-lens system with built-in stitching algorithm delivers a seamless 180° panoramic view in vivid 3K colour — eliminating blind spots without the need for multiple cameras. ColorVu technology with an F1.0 aperture and 0.0005 Lux sensitivity ensures full-colour imaging around the clock, backed by 40m Smart Hybrid Light for optimised night performance.

Key Features

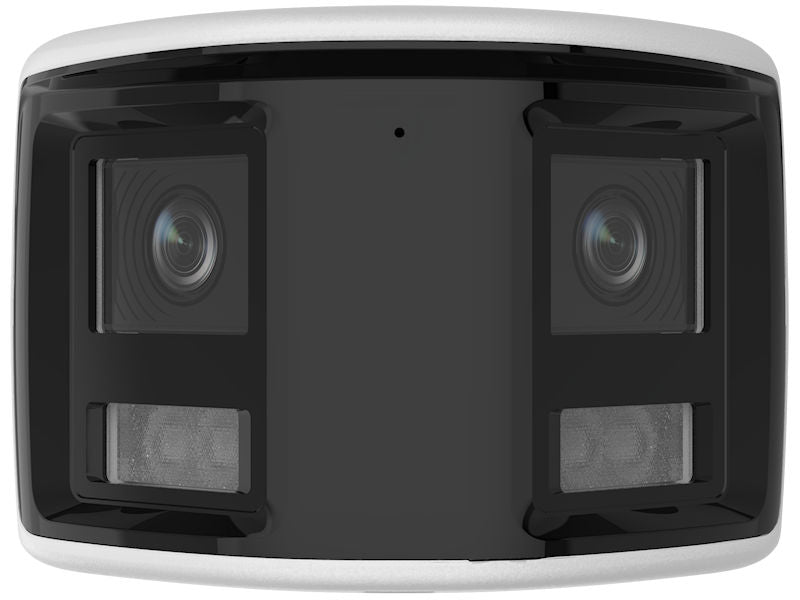

• Dual-Lens 180° Panoramic View — Built-in stitching algorithm delivers seamless wide-area coverage from a single camera
• ColorVu 24/7 Full-Colour Imaging — F1.0 aperture with 0.0005 Lux sensitivity; 0 Lux with white light active
• 5MP / 3K Resolution — 3328 × 1504 at 20fps (dual mode) for sharp, detailed panoramic footage
• Smart Hybrid Light — Up to 40m white light and IR for adaptive, optimised night-time illumination
• 130dB True WDR — Exceptional backlight compensation for clear imaging in high-contrast scenes
• Built-In Microphone — Audio over coaxial cable, no separate audio cabling required
• 2.8mm Fixed Focal Lens — Wide-angle optics across both lenses for maximum panoramic coverage
• Slow Shutter Support — Up to 16× slow shutter for enhanced low-light sensitivity
• IP67 Rated — Fully weatherproof for reliable outdoor installation
• -40°C to 60°C Operating Range — Dependable performance in extreme environments

Specifications

• Model: DS-2CE12KF3TP-DLS
• Resolution: 5MP / 3K (3328 × 1504)
• Lens: Dual 2.8mm fixed focal
• Aperture: F1.0
• Field of View: 180° panoramic (stitched)
• Frame Rate: 3K @ 20fps (dual mode)
• Min. Illumination: 0.0005 Lux (F1.0, AGC ON); 0 Lux (white light on)
• Supplement Light: Smart hybrid (white light + IR), up to 40m
• WDR: 130dB True WDR
• Slow Shutter: Up to 16×
• Audio: Built-in mic, audio over coax
• Ingress Protection: IP67
• Operating Temp: -40°C to 60°C
• Signal System: PAL / NTSC
