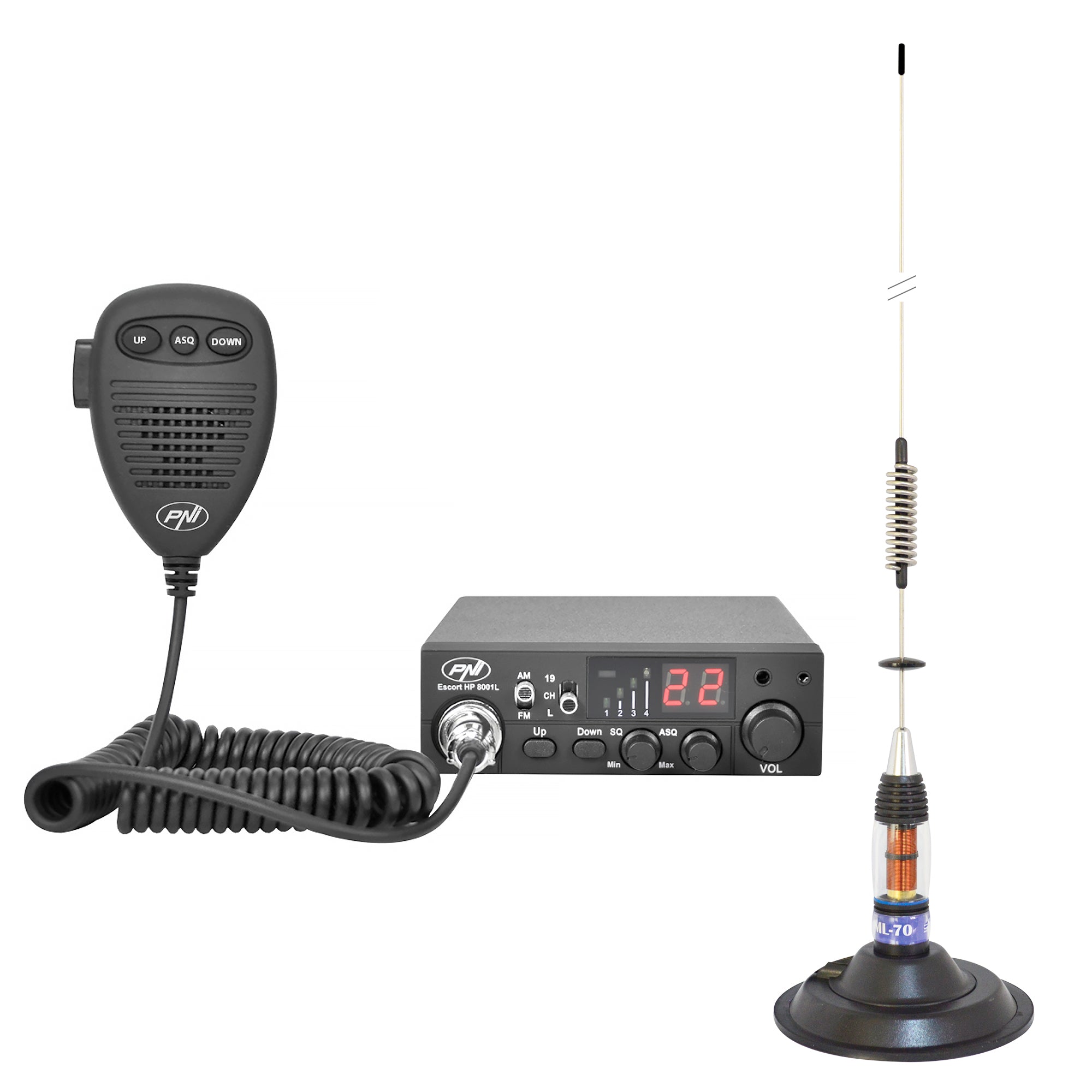

PNI Escort HP 8001L + PNI ML 70 + HS81L Headphones KIT

Adjustable ASQ

An innovation in the CB segment, the adjustable automatic squelch (ASQ) offers maximum comfort for even the most demanding users of automotive CB radio stations. If until now we were used to activating/deactivating the ASQ, now PNI brings its adjustment function, a function that allows the elimination of up to 100% of interference, background noise and interference from the CB band.

6-pin microphone

The HP 8001L ASQ radio station has a jack for a standard 6-pin microphone on the front panel. The microphone included in the package has channel selection buttons, PTT button and ASQ activation button.

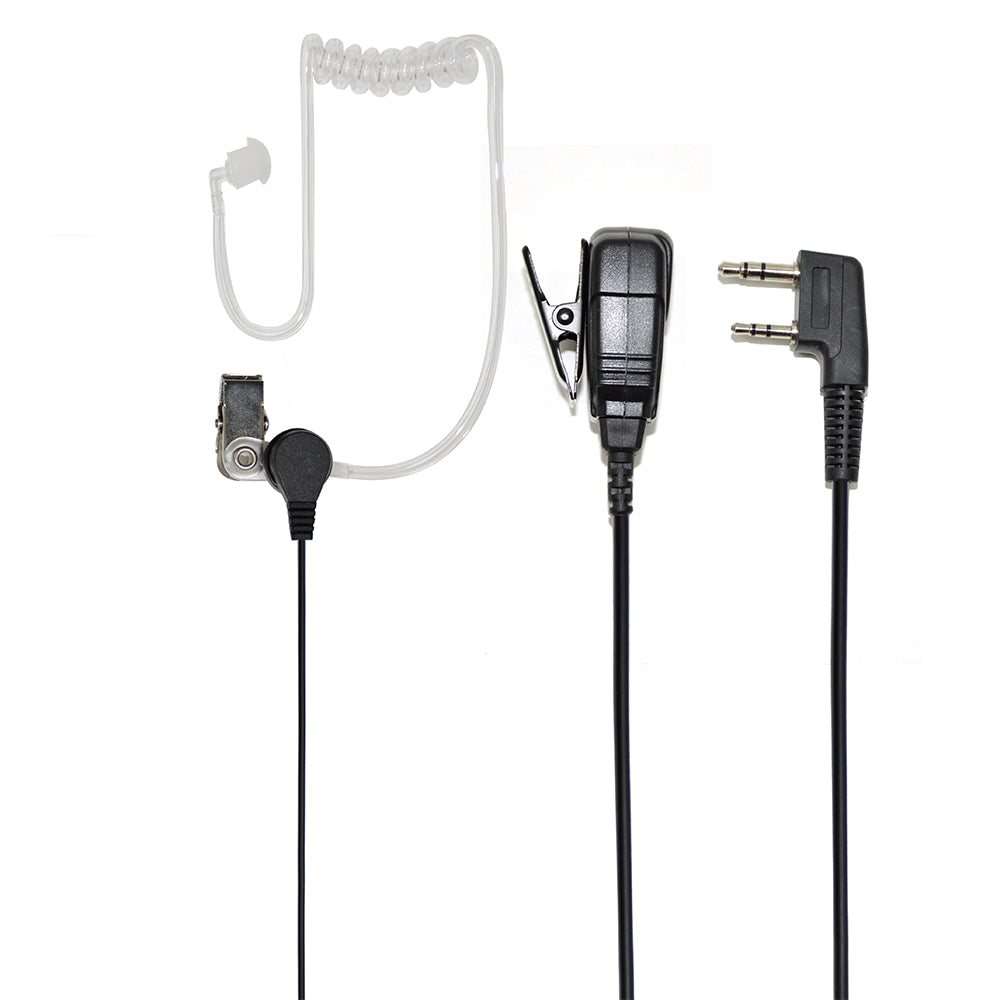

Headphone jack with microphone

The HP 8001L PNI radio station has jacks on the front panel for connecting a pair of headsets with microphone, included in the package.

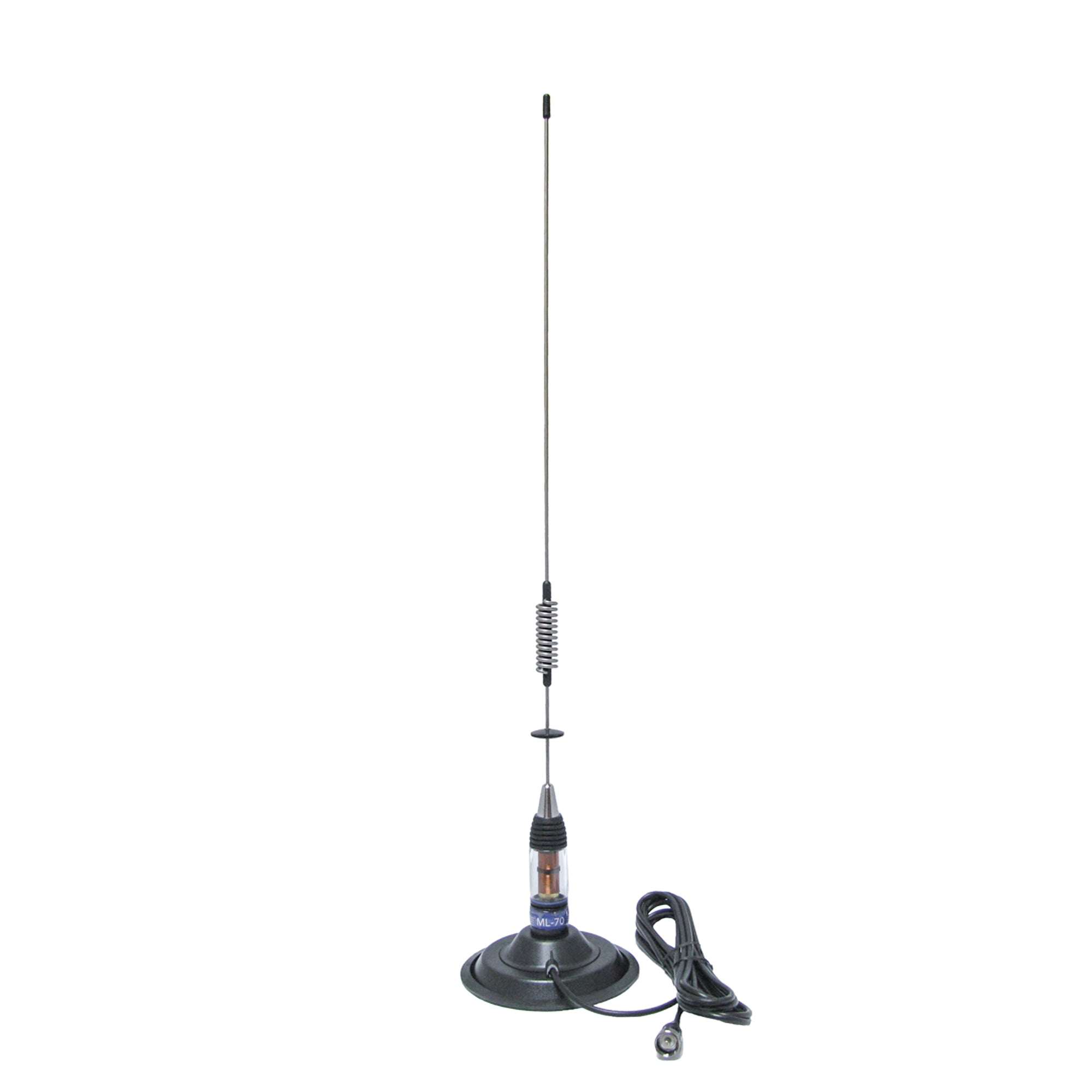

Performance of the PNI ML70 CB antenna

The performance of the product is closely related to the technical characteristics that the antenna has in ideal conditions of assembly and use: SWR <= 1.2, maximum applied power 200 W, impedance 50 Ohms, stainless steel, etc.

Communication distance

The communication distance is another decisive factor in the acquisition and use of a CB antenna. Thus, the communication distance of maximum 9 km is achieved in ideal working conditions: calibrated antenna, open field without obstacles, station with maximum legally allowed power of 4W and with a standard reception. Any obstacle such as: hills, mountains, buildings, walls can lead to a decrease in this distance.

Antenna length

The length of the antenna is a very important factor that can influence the communication distance. Thus, the longer the antenna, the greater the range. The PNI ML70 antenna has a length of 70 cm (magnetic base included).

Magnetic base

The PNI 145/PL magnetic base in the package is provided with a 4 m cable, enough to place the antenna on the dome, has a diameter of 145 mm and a strong magnet that gives the antenna stability even at high speeds.

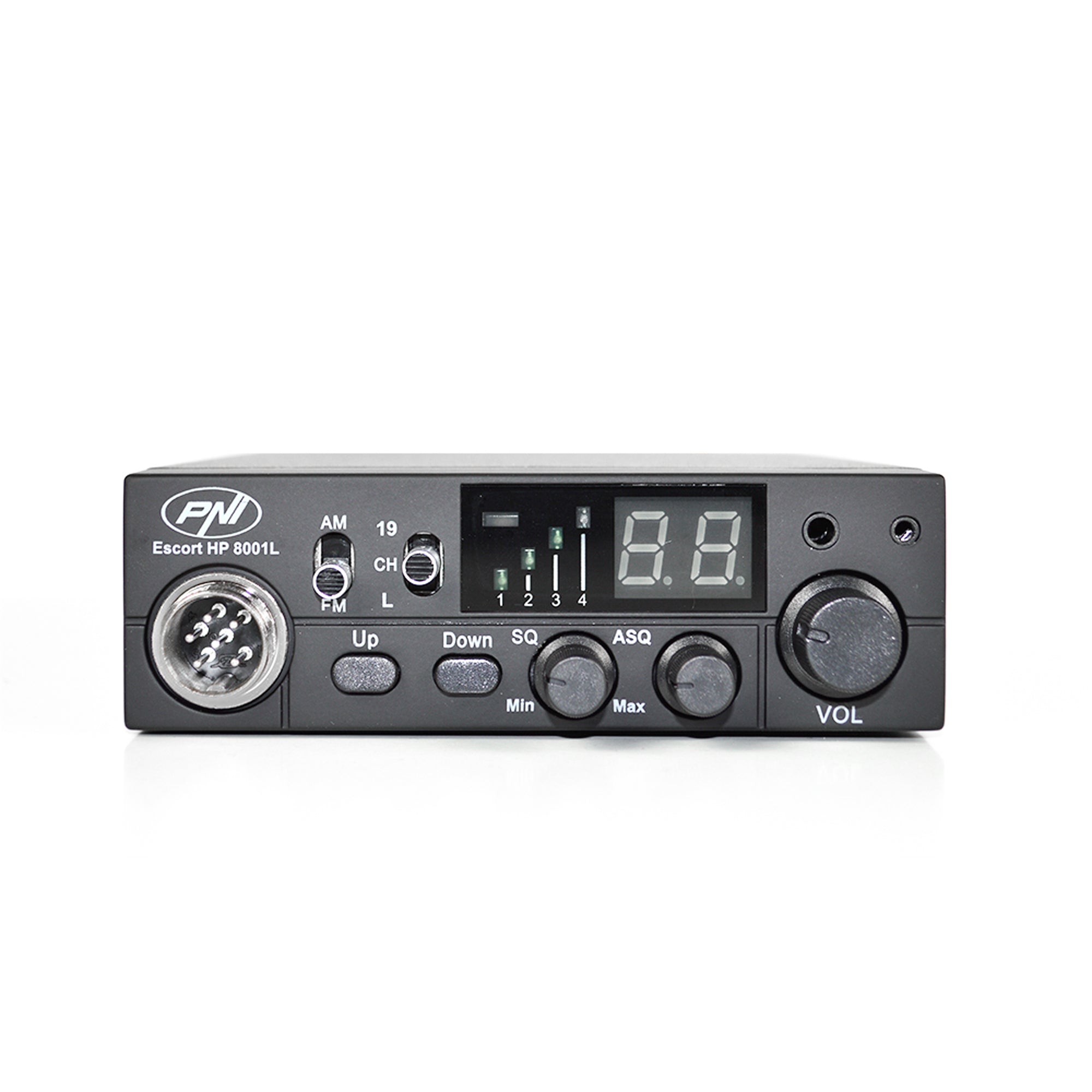

General characteristics of radio station

• Frequency: 26.965-27.405 MHz
• Channels: 40 AM/FM
• Microphone Type: 6 pin
• Audio Signal Distortion: less than 5% @ 1 KHz
• Transmitting power: 4 W
• ASQ

Antenna features

• Frequency: 26 - 28 Mhz
• Maximum applied power: 200 W
• Antenna length: 70 cm
• Impedance: 50 Ohm
• Magnetic base diameter: 145 mm
• Cable length: 4 m
• Connector Type: PL 259
